Angle Beam Transducers

Angle Beam Transducers are single or dual element transducers designed for weld inspections or flaw detection where flaws have an angular orientation relative to the material surface. Weld inspections are performed using shear waves refracted from a longitudinal wave through a lucite wedge. Lucite wedges are designed to produce shear waves of a particular angle in a specified material with minimal wedge noise. We carry both European and North American standard angle beam transducers.

For more information about Angle Beam Transducers, contact our knowledgeable sales engineers by calling 1-847-577-3980 or emailing [email protected].

15 Items

Number of Products to Show
Sort Products By

Details about Waygate Krautkramer Straight Beam Transducer, 1.0 MHz
Product code: 0057873 Waygate Krautkramer Straight Beam Transducer, 1.0 MHz
Price: $1,102.00
1.0 MHz K1SM-E Angle Beam Transducer with a 33 mm Ø contact area and operating range of 40 to 780mm.
Details about Waygate Krautkramer VSY Angle Beam Transducers Dual Element Style - European Standards
Product code: VSY-ANGLE-BEAM Waygate Krautkramer VSY Angle Beam Transducers Dual Element Style - European Standards
$1,070.00 to $1,736.00
VSY transducers that detect small, near surface flaws. 5 x 10 mm in size with side Microdot connectors.

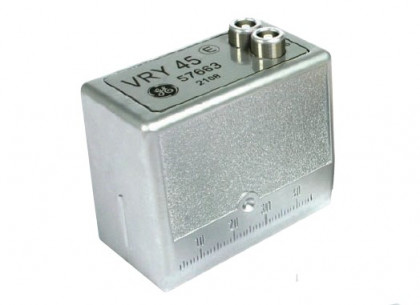

Details about Waygate Krautkramer VRY Angle Beam Transducers Dual Element Style - European Standards
Product code: VRY-ANGLE-BEAM Waygate Krautkramer VRY Angle Beam Transducers Dual Element Style - European Standards
Price: $1,577.00
VRY transducers that detect small, near surface flaws. 10 x 22 mm with side Lemo 00 connectors.
Details about Waygate Krautkramer VS Angle Beam Transducers Dual Element Style - European Standards
Product code: VS-ANGLE-BEAM Waygate Krautkramer VS Angle Beam Transducers Dual Element Style - European Standards
Price: $894.00
VS transducers that detect small, near surface flaws. 3.5 x 10 mm with side Microdot connectors.
Details about Waygate Krautkramer MWK Angle Beam Transducers - European Standards
Product code: MWK-ANGLE-BEAM Waygate Krautkramer MWK Angle Beam Transducers - European Standards
$545.00 to $624.00
MWK small angle beam transducers for testing small objects, 8 mm x 9 mm with side Lemo 00 connectors.
Details about Waygate Krautkramer MWB Angle Beam Transducers - European Standards
Product code: MWB-ANGLE-BEAM Waygate Krautkramer MWB Angle Beam Transducers - European Standards
Quote Pricing
MWB small angle beam transducers for testing small objects, 8 mm x 9 mm with side or top Lemo 00 connectors.
Details about Waygate Krautkramer SWK Angle Beam Transducers - European Standards
Product code: SWK-ANGLE-BEAM Waygate Krautkramer SWK Angle Beam Transducers - European Standards
Price: $711.00
SWK large angle beam transducers, diameter of 14 mm x 14 mm with side Lemo 00 connectors.
Details about Waygate Krautkramer WK Angle Beam Transducers - European Standards
Product code: WK-ANGLE-BEAM Waygate Krautkramer WK Angle Beam Transducers - European Standards
Price: $1,090.00
WK large angle beam transducers, diameter of 20 mm x 22 mm with side Lemo 1 connectors.
Details about Waygate Krautkramer SWB Angle Beam Transducers - European Standards
Product code: SWB-ANGLE-BEAM Waygate Krautkramer SWB Angle Beam Transducers - European Standards
$556.00 to $708.00
SWB large angle beam transducers, diameter of 14 mm x 14 mm with side Lemo 00 side connectors.
Details about Waygate Krautkramer WB Angle Beam Transducers - European Standards
Product code: WB-ANGLE-BEAM Waygate Krautkramer WB Angle Beam Transducers - European Standards
Price: $660.00
WB large angle beam transducers, diameter of 20 mm x 22 mm with side or top Lemo 1 connectors.
Details about Waygate Krautkramer SMSWS Style Gamma Series Subminiature Angle Beam Transducers
Product code: SMSWS-ANGLE-BEAM Waygate Krautkramer SMSWS Style Gamma Series Subminiature Angle Beam Transducers
$714.00 to $943.00
Subminiature transducer for removable lucite wedges with miniature top-mount Microdot connectors.
Details about Waygate Krautkramer ABFP Style Fingertip Potted Angle Beam Transducers
Product code: ABFP-ANGLE-BEAM Waygate Krautkramer ABFP Style Fingertip Potted Angle Beam Transducers
Price: $474.00
Fingertip and fixed angle shear wave transducers for inspecting steel and aluminum.
