Ultrasonic Flaw Calibration Blocks

Determines resolution and sensitivity capabilities, producing area amplitude and distance amplitude plots for normal beam transducers.

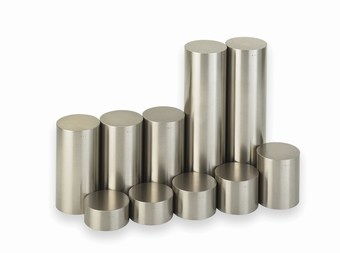

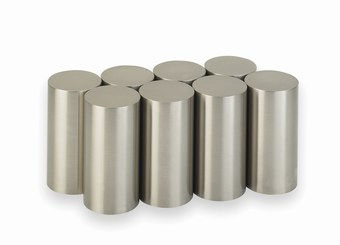

1-0300, 2-0300, 3-0300, 4-0300, 5-0300, 6-0300, 7-0300, and 8-0300 blocks.

3-0300, 5-0012, 5-0025, 5-0050, 5-0075, 5-0150, 5-0300, 5-0600, 8-0300, and 8-0600 blocks.

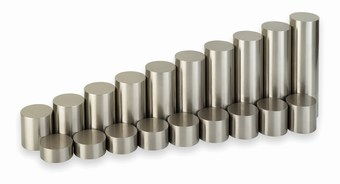

Set of 19 blocks with the same size test hole.

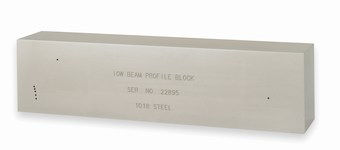

Used for beam profile measurement of angle beam transducers and measurement of transducer angles.

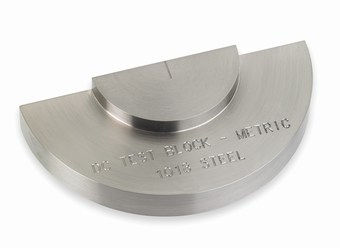

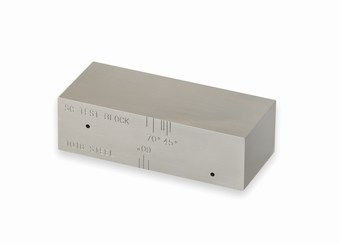

Substitute for the DSC block for distance, beam index, refracted angle and sensitivity calibration.

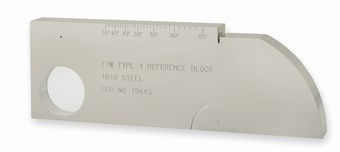

IIW Type 1 Block for calibration of shear and longitudinal transducers.

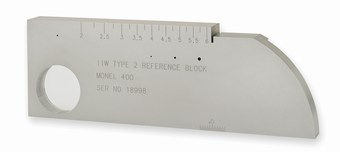

IIW Type 2 Block with 2.0" radius x .250" deep cut-out and additional side-drilled holes for resolution studies.

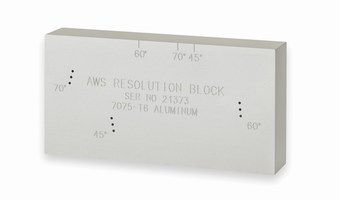

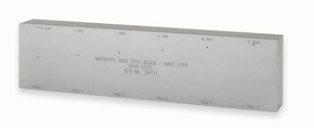

AWS-type block used for shear wave distance calibration.

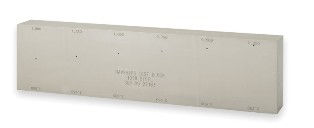

AWS-type block used for shear wave distance and sensitivity calibration.

AWS-type block used for shear wave sensitivity calibration with two .062" diameter through holes.

AWS-type block used for longitudinal distance and sensitivity calibration.
