Magnetic QQI Specimens

Magnetic QQI Specimens (Quantitative Quality Indicators) are magnetic particle test pieces with artificial defects used to demonstrate field direction and field strength within a part for magnetic particle inspection (MPI) applications. Magnetic QQI's are useful for setting up the magnetization parameters for part-specific MPI techniques. QQI's can be used to create an example part for daily system performance checks of magnetizing equipment. Magnetic QQI's are thin and flexible, so they can be easily applied to the test piece and are either taped or glued in place.

For more information about Magnetic QQI Specimens, contact our knowledgeable sales engineers by calling 1-847-577-3980 or emailing [email protected].

11 Items

Number of Products to Show
Sort Products By

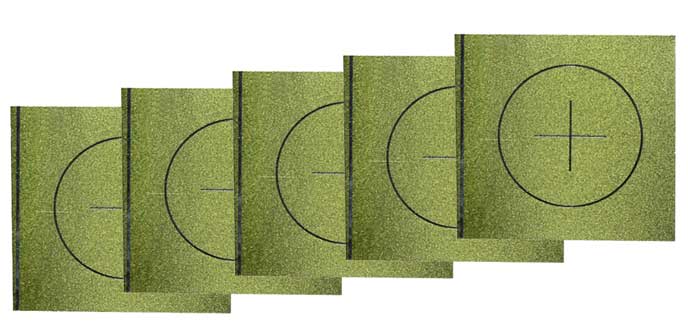

Details about MagnaFlux Standard QQI - Model CX-230 (KSC-230) (set of 5)
Product code: MF-631590 MagnaFlux Standard QQI - Model CX-230 (KSC-230) (set of 5)
Price: $377.00
0.002 inch (0.05 mm) thickness with a notch flaw depth of 30% of shim thickness.
Details about MagnaFlux Miniature QQI Model CX4-230 (set of 5)
Product code: MF-631592 MagnaFlux Miniature QQI Model CX4-230 (set of 5)
Price: $626.00
Four circle-cross notch patterns, to be cut by user into four separate shims. 0.002 inch (0.05 mm) thickness with a notch flaw depth of 30% of shim thickness.

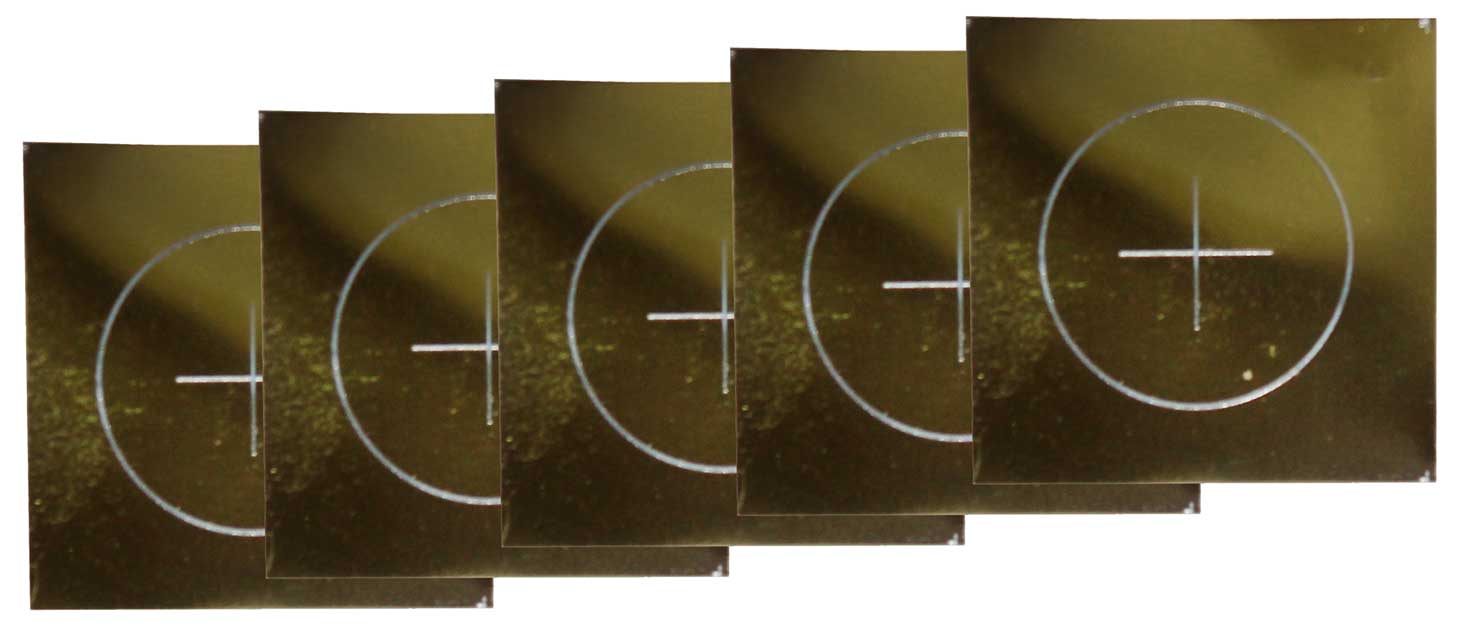

Details about MagnaFlux Standard QQI Model CX-430 (set of 5)
Product code: MF-631591 MagnaFlux Standard QQI Model CX-430 (set of 5)
Price: $590.00
0.004 inch (0.10 mm) thickness with a notch flaw depth of 30% of shim thickness.

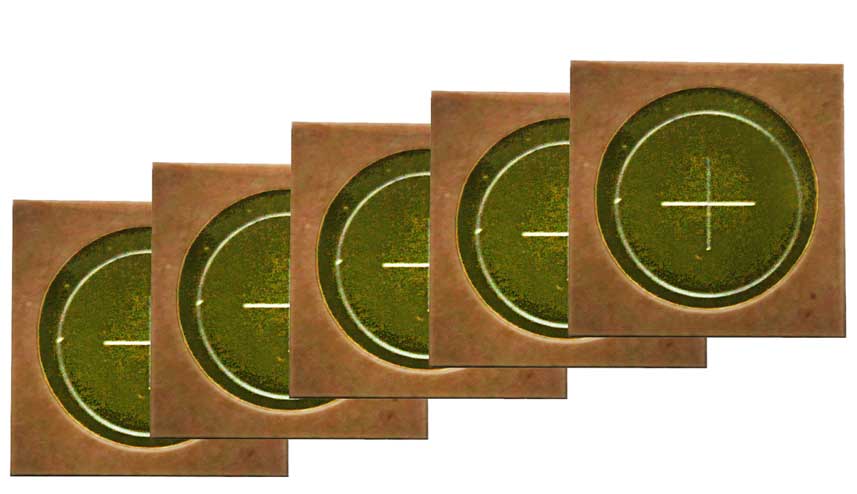

Details about Gould-Bass QQI-230 Test Shim
Product code: N500381001 Gould-Bass QQI-230 Test Shim In Stock
Quote Pricing
QQI-230 Test Shim (CX230-P6) with 1 indication.
Details about Gould-Bass QQI-4230 Test Shim
Product code: N500382001 Gould-Bass QQI-4230 Test Shim
Quote Pricing
QQI-4230 Test Shim (CM4-230) with 0.0006" flaw depth. Only 3 Individual QQI CX4-230's left in stock!
Details about Gould-Bass QQI-230 Test Shim, Self-Adhesive
Product code: N500379001 Gould-Bass QQI-230 Test Shim, Self-Adhesive
Quote Pricing
Self-adhesive QQI-230 Test Shim (CX230) with 1 indication.

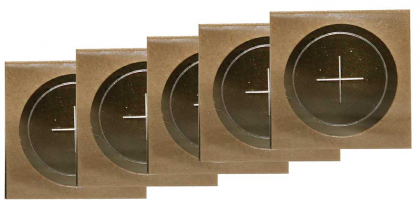

Details about Berg CX430P6 QQI Test Shims
Product code: CX430P6 Berg CX430P6 QQI Test Shims
Price: $52.00
Berg CX430P6 Test Shims with cardboard edges, single or pack of 5.

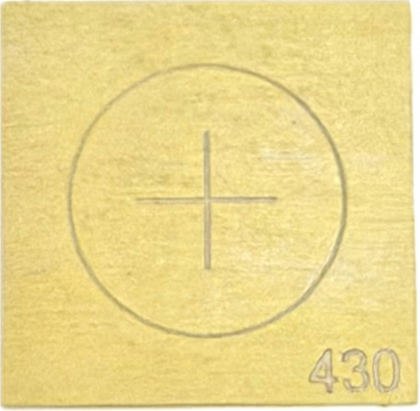

Details about Berg CX-430 Quantitative Quality Indicators
New Product
Product code: BE-CX-430 Berg CX-430 Quantitative Quality Indicators
$57.51 to $332.36
0.75 inch (19 mm) square shim with circle-cross notch pattern, 0.004 inch (0.10 mm) thickness with a notch depth of 30% of shim thickness.

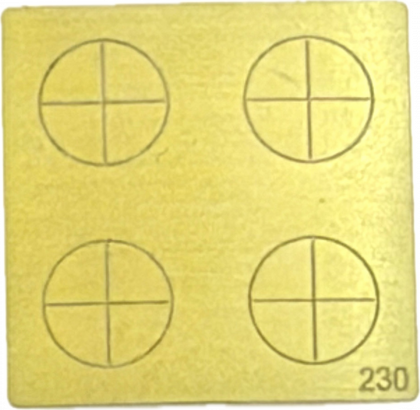

Details about Berg CX4-230 Quantitative Quality Indicators
New Product
Product code: BE-CX4-230 Berg CX4-230 Quantitative Quality Indicators
$57.51 to $332.36
0.79 inch (20 mm) square shim with four circle-cross notch patterns, to be cut by user into four separate shims. 0.002 inch (0.05 mm) thickness with a notch depth of 30% of shim thickness.

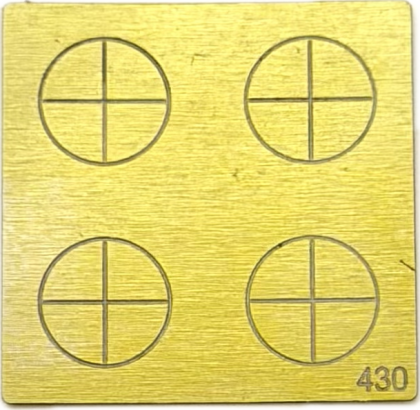

Details about Berg CX4-430 Quantitative Quality Indicators
New Product
Product code: BE-CX4-430 Berg CX4-430 Quantitative Quality Indicators
$57.51 to $332.36
0.75 inch (19 mm) square shim with circle-cross notch pattern, 0.004 inch (0.10 mm) thickness with a notch depth of 30% of shim thickness.

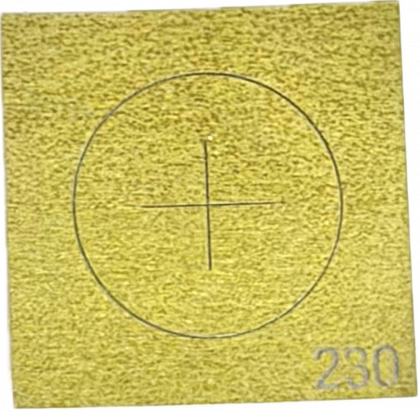

Details about Berg CX-230 Quantitative Quality Indicators
New Product
Product code: BE-CX-230 Berg CX-230 Quantitative Quality Indicators
$57.51 to $332.36
0.75 inch (19 mm) square shim with circle-cross notch pattern, 0.002 inch (0.05 mm) thickness with a notch depth of 30% of shim thickness.
