Waygate Krautkramer Straight Beam Transducer, 1.0 MHz (0057873)

    Waygate Krautkramer Straight Beam Transducer, 1.0 MHz


    Quote Required Quote Required



    This product has been discontinued.


    • Product Codes:
      0057873
    • Tech Support Available
    • Product Weight: 1.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description

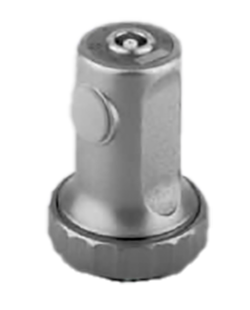

    The Waygate Technologies K1SM-E Transducer, a Baker Hughes business product (formerly GE Inspection Technologies), is a 1 MHz transducer for straight beam applications. The K1SM-E transducer features a 33 mm Ø contact area and an operating range of 40 to 780mm. This transducer is ideal for applications on strong sound attenuating materials.

    Specs

    Type K1SM
    Crystal Size 28mm Ø
    Frequency 1 MHz
    Bandwidth 0.7 to 1.3 MHz
    Operating Range 40 to 780mm
    Near Field Length 31mm
    Echo Width 6mm
    Contact Area 33mm Ø
