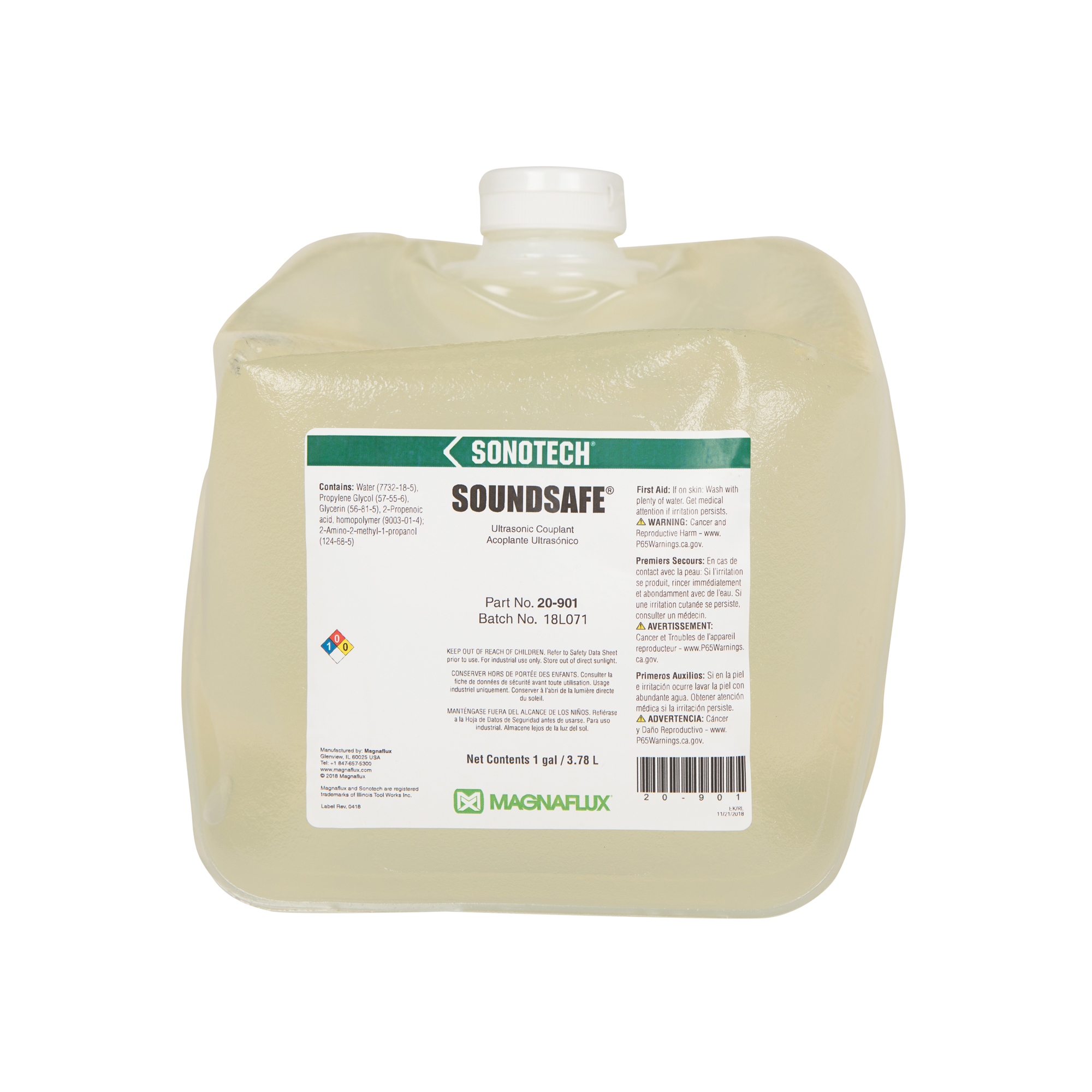

Sonotech Soundsafe (MF-20)

    Sonotech Soundsafe
    Starting at:

    $99.00 1. Quote Required



    This product has been discontinued.

    ADD TO CART

    Share this product
    • Product Codes:
      MF-20-905
    • Tech Support Available
    • Product Weight: 11.00
    HAVE A QUESTION?
      Call:   1-847-577-3980
      Send an Email
       Hours:   8:00 am to 4:30 pm CST

    Description



    SOUNDSAFE® is recommended for applications where ultrasonic couplant may not be removed by the inspector and may later come into contact with animals, humans and waterways. It offers the highest performance of the environmentally benign family of couplants. SOUNDSAFE, a gel couplant, has a high humectant level, including glycerine, to slow drying and provide transducer lubrication. SOUNDSAFE contains an environmentally benign corrosion inhibition system for steel; however, when ferrous corrosion is of primary concern, ULTRAGEL II® provides superior corrosion inhibition. SOUNDSAFE holds on overhead surfaces and fills depressions in rough surfaces, facilitating its use in flaw detection, thickness gaging, and acoustic emission testing.

    SOUNDSAFE meets the Halogens and Sulfur requirements specified in NAVSHIPS MIL-STD-767.


    SOUNDSAFE®
      • Increased acoustic impedance for reduced surface noise
      • Slow drying with excellent transducer lubrication
      • Environmentally benign formula -- no VOCs
      • Low skin irritation potential
        • No harsh surfactants, dyes or fragrances
      • Gel viscosity holds on a majority of overhead and vertical surfaces
      • Corrosion inhibiting system for ferrous based materials
      • Meets nuclear specifications for halogens, sulfur, and low melting point metals
      • Contains glycerine to extend drying time
      • Water-based and water-soluble
      • Environmentally benign formula
    Soundsafe has been tested and approved to:
    • Hot corrosion testing on High Temperature Alloys AMS 5544 (Waspalloy), 5536 (Hastelloy X), 6359 (Ferrous based alloys), 4037 (Aluminum), 5608 (Haynes 188), 5508 (Greek Ascoloy) and 4375 (Magnesium), and has been tested for composite shear modulus, aircraft aluminum corrosion and composite adhesion.
    • Pratt and Whitney PWA 36700/36604, MCL E-205 Type II, Stress Corrosion Cracking testing on Titanium Alloys or ASTM F945.
