PH Tool ERVT Calibration Block (ERVT.BLOCK)

    PH Tool ERVT Calibration Block


    Quote Required Quote Required



    This product has been discontinued.


    Share this product
    • Product Code.:
      ERVT.BLOCK
    • Tech Support Available
    • Product Weight: 0.00
    HAVE A QUESTION?
      Call:   1-847-577-3980
      Send an Email
       Hours:   8:00 am to 4:30 pm CST

    Description

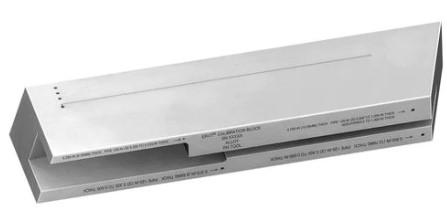

    The PH Tool ERVT Calibration block is ideal for use with flat components and piping over 20" OD. This block combines six flat calibration blocks into one with its unique ASME-compliant design. The Variable Thickness Calibration Block features Side-Drilled Hole (SDH) reflectors to provide a more consistent reference target over a wide range of angles. SDHs function as ASME-compliant reflectors for non-piping applications.

    Section thicknesses are 0.250", 0.375", 0.500", 0.750", 1.0", and 1.5", covering piping from 0.200" to 2.0". Coverage is based on ASME Section V Art. 4 tolerances.

    Features

    • Suitable for conventional and phased array ultrasonic calibrations
    • Range of pipe thicknesses covered engraved on each section
    • Six flat calibration blocks in one on diameters greater than 20"
    • SDH reflectors for more consistent reference target than notches

    Videos

    Specs

    Block ERVT Calibration Block
    Weight 13lbs
    Thicknesses 0.250", 0.375", 0.500", 0.750", 1.0", and 1.5"
    Material 1018 Steel

    Package Includes

    • ERVT Calibration Block
    • Fitted Plastic Case
