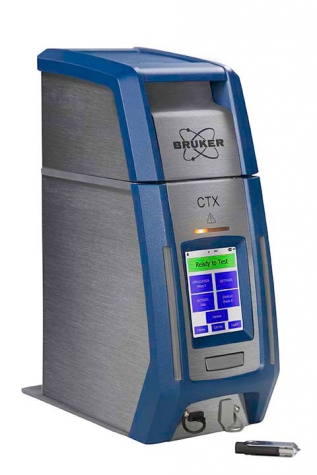

Bruker CTX 300 Portable Countertop XRF Analyzer
SKU:
CTX300
$0.00
New product
FREE Ground Shipping
FREE Calibration
FREE Accessories
Intrinsically Safe
Intrinsically Safe
Product details
Tech support available
- Product code
- CTX300
- Original Code
- Original Code 2
- NSN
- Product weight
- 18.00
Description
The Bruker CTX 300 is a high-powered, countertop XRF analyzer that comes in a compact, light and portable design. The unit has a sturdy stainless steel body and is easy to clean. The CTX 300 features a minimal footprint, taking up very little space on any surface. The unit ships with a standard waterproof and pressure equilibrated Pelican case or can be transported in an optional protective backpack.
Operation
The CTX 300 is operated through a front panel touchscreen display or can run with a PC via Wi-Fi or USB. Readying samples for analysis is easy, and they can be placed in the safety chamber with plenty of room to spare, or in sample cups, baggies or other containers depending on your need.
The Technology
The CTX 300 is a high performance SiPIN detector that measures elements from Chlorine to Uranium and uses a 50kV 2W Rhodium (Rh) thin window X-ray tube to analyze samples. The unit also features Bruker's patented SharpBeam™ optimized X-ray geometry and patented TITAN DetectorShield™ to protect against detector puncture. The unit has an automated 5 position primary beam filter changer with 4 pre-fitted filters. The CTX 300 offers Wi-Fi, Bluetooth® and USB connections. The touchscreen user-interface allows measurement control and provides an easy-to-read results display.
The Toolbox software Bruker includes allows for full remote operation of the CTX 300. Additional add-on software, Bruker’s Artax™, is designed for advanced qualitative, semi-quantitative composition analysis, as well as EasyCal™ for your own, user-defined empirical correlations.
Add-On Packages
The CTX 300 features add-on calibration packages for measuring the following types of materials:
Alloys
- Alloy calibration package for heavy elements only (Ti-Bi). Includes type specific calibrations for stainless steels, tool steels, low alloy steels, nickel alloys, cobalt alloys, copper alloys, zinc alloys, light alloys and general calibration for all other alloy types.
- Precious Metal calibration for Au, Ag, Pt, Pd based alloys includes KARAT library.
Soil
- Soil calibration, Ti-U for heavy and transition elements. Optimized for regulated environmental elements. Uses Compton normalization.
- Geochem calibration with Ti to U element range. Includes GeoChem General for mining and GeoChem Trace for geo exploration lower concentrations.
- Regulated Plastics application to test for restricted or regulated elements in polymers.
- Regulated Metals application to test for restricted elements (Cd, Pb, Cr, Hg etc.) in metal alloys.
Custom Applications
Custom calibrations for customer specific specifications can be created including calibration modifications and custom grade libraries.
Additional Info
Package Includes
- Portable CTX 300 Countertop XRF analyzer, 50kV 2 Watt Rhodium(Rh) thin window X-ray tube
- Li-Ion battery with smart charger
- USB stick for data storage and easy reporting
- Bruker Instrument Toolbox software package for reporting, spectral analysis and remote control.
- Extensive manuals and safety video
- Waterproof and pressure equilibrated PELICAN™ transport case
- 2 yr. warranty (extendable to 5 year total protection)
Specifications
| CTX Model 800 |
CTX Model 600 |
CTX Model 500s |
CTX Model 500 |
CTX Model 300 |
|
| Dimensions | 13.5 cm x 25 cm x 35 cm (5.3 in x 9.8 in x 13.8 in) W x D x H | ||||
| Weight | 7.1 kg (15.6 lbs) with battery | ||||
| Power | Rechargeable Smart Lithium Ion Battery Pack — 7.2V, 6.8Ah, 49Wh; AC adapter 100-240V, 1A, 50-60Hz | ||||
| Excitation source | Rh target X-ray tube; 4W max output; 6-50kV, 5-200μA Swiss- limited to 5 - 100μA |
Rh target X-ray tube; 2W max output, 15-50kV, max 100μA |
Rh target X-ray tube; |
Rh target X-ray tube; 2W max output, 15-50kV, 5-100μA |
|
| Elemental range | Mg - U | Ti - U | Cl - U | ||
| Collimation | 5 mm standard; 8 or 3 mm optional |
5mm | |||
| Filters | Five (5) position automatic filter changer with preinstalled filters |
Five (5) position automatic filter changer with preinstalled filters |
No filter | Optimized fixed filter | Five (5) position automatic filter changer with preinstalled filters |
| Detector | Large area silicon drift detector (SDD) with< 145 eV resolution @ 250,000 cps Mn Kα;TITAN Detector Shield | SDD detector with <179 eV resolution;TITAN Detector Shield | Si-PIN detector with <195 eV resolution; TITAN Detector Shield |
||
| Geometry | Features patented SharpBeam™ beam path for best performance at low power | ||||
| Sample chamber | 12 cm x 13.5 cm x 8.5 cm (4.7 in x 5.3 in x 3.3 in) W x D x H | ||||
| Sample camera | Optional | Not Available | Optional | ||
| Touchscreen display | 9.4 cm (3.7 in) high contrast industrial touchscreen LCD | ||||
| System safety | Password protection, lid safety interlock, X-ray warning lights | ||||
| Control software | Full control OS on analyzer and on PC software (Windows® operating system) | ||||
| Analysis software | Live spectra on analyzer; live spectra and full qualitative, semi-quantitative and quantitative software on PC(Artax™ and EasyCal™ software optional) | ||||
| Data storage & transfer | Internal and USB data storage, USB port for data transfer, Wi-Fi and Bluetooth connectivity | ||||
| Languages | Chinese, Chinese simplified, Dutch, English, French, French Canadian, German, Indonesian, Italian, Japanese, Korean,Polish, PortugeseBR, Russian, SpanishMEX, SpanishSPN, Thai, Turkish | ||||
| Operating range | -10°C to +40°C (+14°F to 104°F); IP54 dust and splash resistant | ||||
| Certification | CE | ||||
Features
Features of CTX 500S:
- Adjustable automated X-ray voltage and current for measurement optimization
- Patented SharpBeam™ geometry for best performance at low power
- Patented DetectorShield™ for long-term performance and minimal service
- Consistent sample presentation with index markings for better precision
- High Performance SiPIN detector with elemental range Cl - U
-
- Protected against detector puncture with the patented TITAN Detector Shield (TDS)
- Automated 5 position primary beam Filter changer with 4 pre-fitted filters
- Light weight, 7.1 kg (15.6 lb.)
- Interlocked and completely sealed sample compartment with no leakage radiation.
- Patented SharpBeam™ optical beam path for best performance and precise beam spot
- Industrial grade stainless steel construction
- Embedded touch screen with easy to use interface
- Bluetooth™, USB and Wi-Fi connectivity (where allowed by local regulations)
- Powered by Lithium-Ion battery or via 110/220V AC adapter
