Waygate Krautkramer DMS Go+ Ultrasonic Thickness Gauge w/ A & B Scan and Data Recorder

SKU: GEIT1498384
$4,281.00

Waygate Krautkramer DMS Go+ Ultrasonic Thickness Gauge w/ A & B Scan and Data Recorder

Thumbnail Filmstrip of Waygate Krautkramer DMS Go+ Ultrasonic Thickness Gauge w/ A & B Scan and Data Recorder Images

    FREE Ground Shipping

    Product details

    Tech support available

    Product codes
    GEIT1512169, GEIT1512169C, GEIT1498381, GEIT1498381C, GEIT1498384, GEIT1498384C, BE-DGOPLUSBASIC-1, BE-DGOPLUSBASIC-2, BE-DGOPLUSBASIC-3, BE-DGOPLUSBASIC-4, 100N4298, 100N4299, 100N4300, 100N4301, 100N4302, BE-DGOPLUS-1, BE-DGOPLUS-2, BE-DGOPLUS-3, BE-DGOPLUS-4, 100N3519, 100N3520, 100N3521, 100N3522, 100N3523, BE-DGOPLUSADV-1, BE-DGOPLUSADV-2, BE-DGOPLUSADV-3, BE-DGOPLUSADV-4
    Product weight
    14.00
    Purchase Waygate Krautkramer DMS Go+ Ultrasonic Thickness Gauge w/ A & B Scan and Data Recorder

    Waygate Krautkramer DMS Go+ Ultrasonic Thickness Gauge w/ A & B Scan and Data Recorder

    SKU: GEIT1498384

    $4,281.00
    In Stock
    This product has been discontinued.

    Description


    Waygate Technologies Krautkramer DMS Go+ Ultrasonic Thickness Gauges (DMSGOPLUS), a Baker Hughes business product (formerly GE Inspection Technologies), provide accurate, reliable, and comprehensive thickness inspection data in a wide range of applications and environments. The DMS GO+ features the same hardware and operating platform as the USM Go+ flaw detector, combining the two to offer a powerful instrument. These Gauges are lightweight, ergonomic, and IP67 rated for operating in harsh environments. The DMS Go+ is ideal for inspections in oil & gas, power generation, aerospace, and metals industries.

    The DMS Go+ includes automatic gain control for repeatability and corrosion monitoring, and built-in temperature compensation for accurate measurement up to 1000°F. An on-board data recorder can hold thousands of thickness readings including A-scan, B-scan, and MicroGrid attachments, which can be exported to user data management systems in various file formats. Three models are available to best suit a wide variety of inspection needs.

    DMS Go+ Basic

    • Simple to use
    • A-scan verification
    • D-Meter dual-element probe compatible

    DMS Go+ Standard

    • B-scan, timed, for cross-sectional view
    • Compatible with single element probes for precision thickness measurement and temperature compensated readings

    DMS Go+ Advanced

    • 6 data recording file structures plus 3D & 4D via UltraMATE
    • TopCoat/Auto-V measurement capabilities to eliminate removal of many coatings
    DMSGOPLUS
    DMSGO-PLUS
    DMSGO+
    DMS GO +
    DMSGO+
    DMS GO+

    If you would like to add the CLGOPLUS please contact Berg Engineering.

    Additional Info

    PDF Brochure

    Related Accessories
    Package Includes

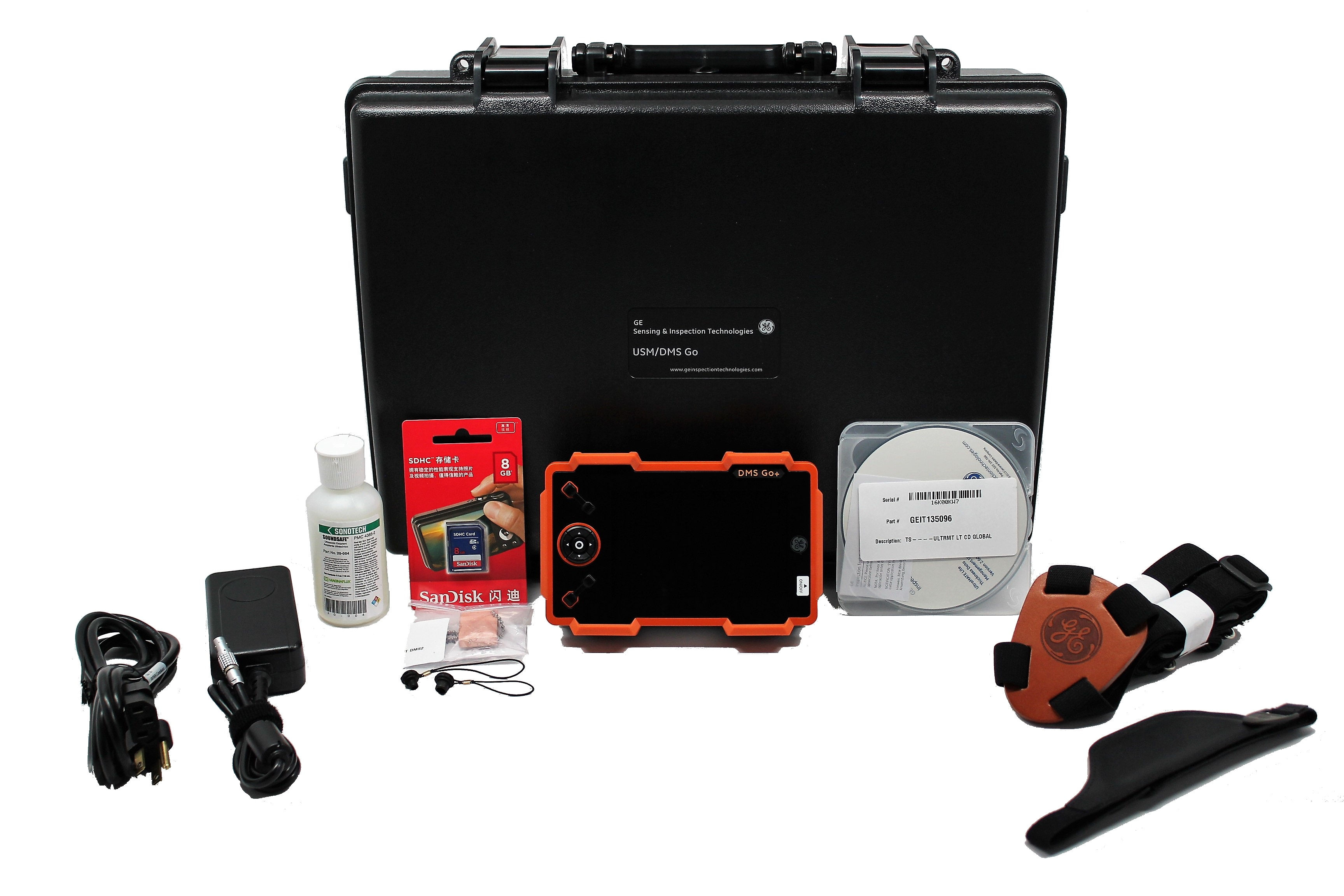

    The DMS Go+ Instrument Includes:

    • Lithium Ion “on-board” rechargeable battery pack
    • Lithium Ion battery charger /AC power supply
    • Protective LCD Screen Overlays (pkg. 10), clear, field replaceable
    • SD Card (2 GB)
    • Transport Case
    • Hand Strap
    • Quick Reference
    • Operating Card
    • Operating Manual on CD
    • ISO17025 Certificate Of Calbration
    • Couplant Sample
    Specifications
    Display 5"
    800 x 480 pixels
    (W x H) 108 × 65 mm / 4.25 x 2.55”
    >400 cd/m2
    Size (WxHxD) 175 x 111 x 50 mm / 6.88 x 4.37 x 1.96”
    Weight 877 g / 1.87 lbs
    Protection class IP 67
    Operating temperature 0 – 55 °C / 32 – 131 °F
    Battery Li-Ion, rechargeable
    > 8 hours operation time
    Power adapter/charger 100 – 240 V AC, 50/60 Hz
    Probe connector Dual Lemo-00 (T/R)
    PC interface Micro USB
    Memory card SD-Card 16 GB max
    Data recorder
    (model specific)    		 100.000 readings per file. Multiple files can be stored on
    SD card. 8 file formats. Attachment of A-Scan, B-Scan and
    micro grid
    Pulser 120 – 300 V
    Spike wave
    Automatically matched to probe
    Pulse Repetition Frequency 4, 8 or 16 Hz selectable
    Receiver
    (model specific)    		 110 dB dynamic. Automatic gain control.
    Manual –high, -low, -auto
    Measurement range 0.4 – 14,000 m (0.01 – 551”)
    Units mm, inch, µs
    Digital display resolution 0,01 mm or 0,1 mm (0.001” or 0.01”) selectable
    Measurement techniques
    (model specific)    		 Zero crossing. IP to 1st echo.
    Multi echo, TopCoat, Auto-V
    Calibration
    (model specific)    		 One-point. Two-point.
    Auto or Manual On-block and Off-block Zero.
    Automatic V-Path correction
    Display mode
    (model specific)    		 Thickness and A-Scan. Temperature corrected thickness.
    B-Scan. Min/Max capture. Differential
    Compliance EN 61010, EN 61326-1, EN 12668, ASTM E 1324, E317, ANSI/
    NCSL Z 540-1-1994, MIL-STD 45662A, MIL-STD 2154, EN 15317
    Features
    • Zero cross measurement technique for high measurement stability and reliability
    • Automatic gain control for excellent repeatability and corrosion monitoring
    • Built-in temperature compensation for accurate measurement up to 540°C (1000°F)
    • Multiple calibration and zeroing modes for repeatable accuracy
    • Multiple measurement modes, including thickness, A-scan, B-scan, Min/max and differential
    • On-board data recorder, with capacity of hundreds of thousands of thickness readings, with storage of A-scan, B-scan and MicroGrid attachments
    • Data can be organized in pre-set, custom or advanced file structures
    • Data transfer is by SD card or via USB port to PC in various file formats for integration with user data management systems
    • Compatible with UltraMate and UltraMate Lite data management programs
    • Intuitive arrow-keypad for positive digital control of parameters
    • Large, 800x480 pixel display screen, designed to reduce eye-strain and adjustable to provide optimum visibility
    • Robust construction to IP67 for operation in harsh environments
    • Battery can be re-charged on or off board
    Accessories

    Thickness Probes and Cables

    Thickness Calibration Blocks

    Ultrasonic Couplant

    Videos
