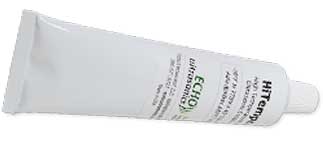

Echo Ultrasonics HiTempco High Temperature Couplant (HITEMPCO)

    Echo Ultrasonics HiTempco High Temperature Couplant
    Starting at:

    $55.20 1. Quote Required



    This product has been discontinued.

    ADD TO CART

    Share this product
    • Product Codes:
      HTPLUS-02
    • Tech Support Available
    • Product Weight: 1.00
    HAVE A QUESTION?
      Call:   1-847-577-3980
      Send an Email
       Hours:   8:00 am to 4:30 pm CST

    Description

    HiTempco was first introduced in the mid-1970's by Aerotech/Krautkramer Branson and has since been the definitive standard in silicone-based ultrasonic couplants.

    With a broad temperature range of -50˚ to 775˚F (-45˚ to 412˚C), HiTempco is well suited for high-temperature thickness gaging and flaw detection applications, in addition to ambient and low-temperature coupling. If you have an application that requires no corrosion, broad material compatibility, long service life and low toxicity, then HiTempco should be able to meet all of your requirements.

    Features

    • Very high viscosity
    • No residue
    • Non-drying
    • Strong corrosion inhibition
    • Non-toxic, non-irritating
    • Low environmental impact. Contains no perfluorocarbons, peanut or tree nut oils

    Specs

    Specifications:
    • Operating Range: -50˚ to 775˚F (-45˚ to 412˚C)
    • Viscosity: ≈40,000 cps. Brookfield
    • Flash Point: Cleveland Open Cup 250˚F (121˚C)
    • Auto-ignition: 820˚F (437˚C)
    Instantaneous ultrasonic response (does not contain plastic powders which delay ultrasonic conduction and result in difficult-to-remove residues). Excellent corrosion inhibitor. Provides non-toxic, long-term corrosion inhibition for steel and cast iron and is compatible with other metals and most plastics. HiTempco may be left in place unless it will interfere with subsequent manufacturing operations such as painting or electroplating.

    Removal: Wipe with paper or cloth rag. If complete removal is required, dish detergent and water or a chemical degreaser can be used.
