Ritec RiCubio Fluid System for High Pressure Water, Pipes from ID 80-300 mm (80251)

    Ritec RiCubio Fluid System for High Pressure Water, Pipes from ID 80-300 mm


    Quote Required Quote Required



    This product has been discontinued.

    • Product Code:
      80251
    • Tech Support Available
    • Product Weight: 80.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description

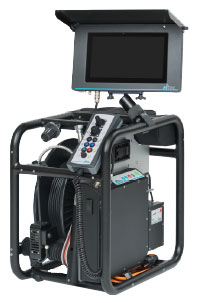

    The Ritec RiCubio Fluid System for High Pressure Water, and for pipes from ID 80 mm (2.8") up to ID 300 mm (12"), is an ideal Push Pull Camera for those who want to combine complete inspections with a very long range. The RiCubio Fluid can clean the pipe system at the same time.

    System
       - Camera electronic for all camera functions
       - 80 m (260 ft.) flexible cable, 6.6 mm in diameter
       - Manual operation with automatic cable guide
       - Camera cable length up to 120 m (400 ft.) possible
       - Prepared for changeable digital camera heads
       - Video – out BNC
       - Mains power from 100V AC up to 240V AC
    Handling
       - Simple carrying via different grip possibilities (lateral, in front of the breast, etc.)
       - Lifting in pairs (onto a scaffold for example)
       - Passing to another person (into a trench for example)
    Stability
       - All-round protection by circular cage
       - Composition of sturdy stainless steel, high-quality synthetic material and lightweight aluminum
         for a perfect relation between stability and weight
       - Industry-mounted reel basket
       - Stable stand by large footprint
       - Splash water protected
    Display
       - Display turnable in all directions
       - Choice between 5.6“ and 8“ Video Tablet Screen
       - Picture memory on SD recording
    Remote Control
       - Remote control with park position on the reel
       - Joystick with improved ease of use (optional)
       - Belt clip
    Brake
       - High grade wheel disc brake
       - Rapid choice twist grip (fine adjustable via twist-part on the grip)
    Meter Counter
       - High-precision meter counter with displaying in the monitor set of meters, on/off with buttons
         control
       - Minimum of movable elements
    Service
       - Service pleasant by numerous plug connections and modular structure
       - Easy packaging and transporting because of cubical form
    Forward Feed Nozzle with Hose Connection
       - Connection facility to the camera connector
       - HD-nozzle ¼ “ with ½ “ alignment
       - Driving possibility via push cable
    Other
       - Bag for small parts
