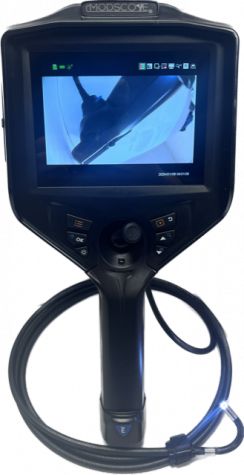

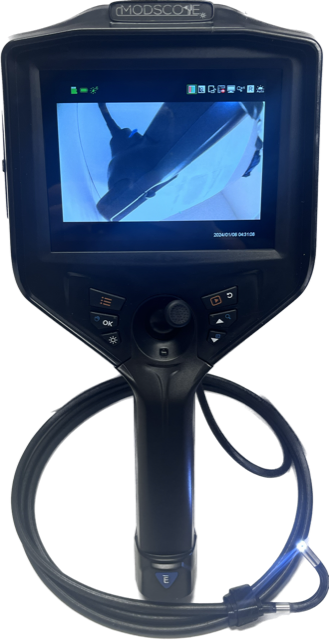

ModScope 6mm UV & White light Source Videoscope, 5.1 Inch Display

Introducing Berg Engineering's ModScope 6mm UV & White Light Source, HD Videoscope, a cutting-edge inspection tool designed for superior performance in various industries, including Aerospace, Automotive, Energy, Oil & Gas, Pharmaceutical, Food & Beverage, and Manufacturing.

The ModScope 6mm Videoscope, with its 5.1-inch TFT wide color gamut display and ergonomic handle, is a lightweight and modular unit, weighing only 0.56kg. The intelligent system features a 400-700nm white light source and a 365nm ultraviolet light source, enhancing detection capabilities with UV and LED lighting by Berg Engineering.

The unit boasts a remarkable 8-hour work time, powered by a 3.7V dual battery system, with a convenient battery charge indicator on the handle. The modular design allows for cost-effective replacement of the display or probe in case of damage, providing flexibility and customizability in display and probe options.

The 6mm probe, with cable lengths ranging from of 1.5m, 2.0m, 3.0m, 4.0m, & 5.0 meters, offers 360° all-way articulation, utilizing damping-type positioning and probe-locking features for precise inspections. Choose between a Super LED (40,000 lux) and adjustable Fiber Optic (90,000 lux) light source, and select from front view, side view, and dual lenses.

Equipped with a one-megapixel camera, the ModScope 6mm captures clear and precise images with a resolution of 1280x960 pixels. The camera allows 8x zoom for detailed defect analysis. The unit's user-oriented technology includes adjustable image parameters, rotation, playback, and an onscreen scale.

The intelligent software provides features like auto white balance, exposure control, negative film mode, and HD and Negative Film modes for comprehensive defect analysis. The one-key toggle seamlessly transitions between white and UV light sources, optimizing efficiency in detection.

For added convenience, the ModScope 6mm allows image and video output via Wi-Fi or HDMI/Micro-USB cable in JPEG, MOV, or AVI formats. The unit supports multiple languages for user preference.

Ideal for use in harsh environments, the ModScope 6mm Videoscope includes an additional temperature sensor. When the temperature exceeds 80°C (176°F), the unit displays the temperature in red and enters shutdown mode.

Experience the future of inspections with Berg Engineering's ModScope 6mm UV & White Light Source Videoscope – a high-quality, durable, and versatile tool designed to meet the demands of professionals across various industries.

Brochure

• Lightweight, modular design
• Durable braided tungsten probe sheath
• 360° all-way articulation
• Options in probe length and light source
• Settings for optimal probability of detection
• 8 hour work time with battery indication on the unit
• Suitable for Automotive, Aerospace, Energy, Oil & Gas, Pharmaceutical, Food & Beverage, and Manufacturing industries
