ModScope 5.1 Inch Display Videoscope Probes (MOD5.1-PROBE)

    ModScope 5.1 Inch Display Videoscope Probes


    Quote Required Quote Required



    This product has been discontinued.


    • Product Codes:
      BE-JP-B601.5-1M-FV
    • Tech Support Available
    • Product Weight: 2.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description

    The ModScope Videoscope Probe by Berg Engineering is lightweight with a superior 8 hour work time for excellent performance in the field. Berg Engineering's ModScope Videoscope is ideal for use in Aerospace, Automotive, Energy, Oil & Gas, Pharmaceutical, Food & Beverage, and Manufacturing industries.

    Enhance your POD (Probability of Detection) with smooth articulation and a powerful camera during routine or special inspections.

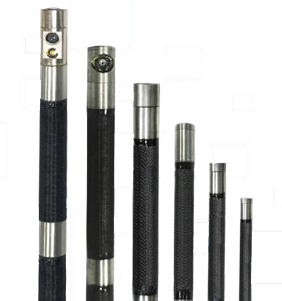

    Durable, Articulating Probes

    The ModScope Videoscope Probe offers an IP67 probe with diameters of 8mm, 6mm,4.2mm, 3.8mm, 2.8mm, and 2.2mm, as well as lengths of 1.5m, 2.0m, 3.0m, 4.0m, 5.0m, 8.0m, or 10.0m. Utilize the damping-type positioning and the probe-locking features to position the probe as needed without hassle. Probes have 360° all-way articulation with a maximum bending angle of 170°. Probes have a choice of light source, a Super LED or an adjustable Fiber Optic. Options in lenses include frontview, sideview, and dual.

    The Modscope Videoscope Probe camera utilizes one megapixel for a clear, precise image. For added durability, the probe is protected 42mm buffer protection device between the probe and handle. Image/video resolution is crisp and clear with 1280x960 pixels. The camera can zoom in and out 8x to view possible defects in greater detail.

    Features

    • Durable braided tungsten probe sheath
    • 360° all-way articulation
    • Options in probe length and lightsource
    • Settings for optimal probability of detection
    • Suitable for Automotive, Aerospace, Energy, Oil & Gas, Pharmaceutical, Food & Beverage, and Manufacturing industries

    Videos

    Specs

    Probe Camera Diameter 8mm 6mm 4.2mm 3.8mm 2.8mm 2.2mm
    Illuminance Super LED: 55,000 lux
    Fiber Optic:100,000 lux
    Super LED: 40,000 lux
    Fiber Optic: 90,000 lux
    Fiber Optic: 20,000 lux Super LED:10,000 lux
    Fiber Optic: 20,000 lux
    Fiber Optic: 20,000 lux Fiber Optic: 15,000 lux
    Probe Length &
    Bending Angle
    1.5m/140°
    2.0m/130°
    3.0m/100°
    4.0m/80°
    5.0m/70°
    8.0m/60°
    10.0m/40°
    1.0/170°
    1.5m/160°
    2.0m/150°
    3.0m/120°
    4.0m/100°
    5.0m/90°
    8.0m/80°
    10.0m/60°
    1.0m/160°
    1.5m/150°
    2.0m/120°
    3.0m/70°
    1.0m/160°
    1.5m/150°
    2.0m/120°
    3.0m/70°
    1.0m/130°
    1.5m/100°
    2.0m/70°
    1.0m/80°
    1.5m/70°
    2.0m/40°
    Field of View 120° 120° 120° 120°/90°(Side) 120° 120°
    Depth of Field 10-100mm; 5-50mm for 2.8mm/2.2mm probes
    Viewing
    Directions
    Front View, 90° Side View, Dual Lens
    Probe
    Positioning
    Damping positioning
    Articulation 360° joystick control (2-way for 2.2mm probes) with articulation lock
    Camera Pixels 1 megapixel; 450,000 pixels for 8.0/10.0m probes 300,000 pixels 160,000 pixels
    Resolution
    1280x720p
    Photo/Video
    Format
    JPEG/MOV
    Tube Durability 5 layers of wear-resistant tungsten; 42mm buffer device between tube and handle
    Environmental IP67 Dust Proof and Waterproof
