Waygate Krautkramer DSC Block Inch 1018 Steel (118-540-300)

    Waygate Krautkramer DSC Block Inch 1018 Steel
    Starting at:

    $625.00 1. Quote Required



    • Product Code:
      118-540-300
    • Original Code:
      118-540-300
    • Tech Support Available
    • Product Weight: 6.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description

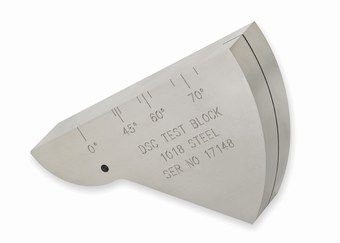

    The Waygate Technologies Krautkramer DSC block, a Baker Hughes business product (formerly GE Inspection Technologies), is used for shear wave distance and sensitivity calibration and is made of 1018 carbon steel with inch reference marks. Contains a 1.0" radius opposite a 3.0" radius. The 3.0" radius includes a .375" deep x .032" wide radiused slot. Also contains a 0° reference point for checking exit point on wedge, and a .125" diameter through hole and corresponding markings at 45°, 60°, and 70° for measuring actual refracted angle. In accordance with ASTM E164 and AWS 6.16.1B. Metric version available. Special DSC blocks with radiussed scanning surfaces for NPS sizes also offered.

    • Dimensions: 1" thick
    • Fitted wooden storage case optional

    Features

    • Made of carbon steel
    •  .375" deep x .032" wide radiused slot
    •  0° reference point for checking exit point on wedge
    • .125" diameter through hole and corresponding markings at 45°, 60°, and 70°
    • In accordance with ASTM E164 and AWS 6.16.1B
