Advanced Ultrasound

Advanced Ultrasound

Phased array ultrasonics (PA) is an advanced method of ultrasonic testing that has applications in industrial nondestructive testing. Common applications are to non-destructively find flaws in manufactured materials such as welds. Single-element (non-phased array) probes, emit a beam in a fixed direction. To test a large volume of material, a conventional probe must be physically moved to sweep the beam through the area of testing. Alternately the beam from a phased array probe can be focused and swept electronically without moving the probe. The beam is controllable because a phased array probe is made up of multiple small elements,each of which can be pulsed individually at a computer-calculated timing. The term phased refers to the timing, and the term array refers to the multiple elements. Phased array ultrasonic testing is based on principles of wave physics.
Read More >
8 Products Found

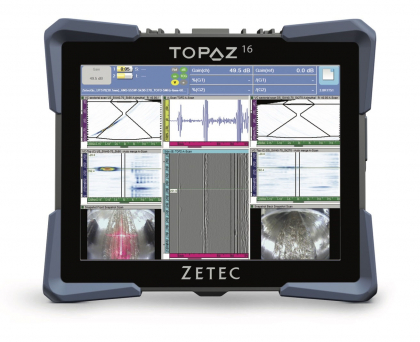

Zetec Topaz16 Portable 16 Channel Phased Array UT Instrument

Zetec Topaz16 Portable 16 Channel Phased Array UT Instrument

Zetec Topaz16 Portable 16 Channel Phased Array UT Instrument
The Zetec Topaz16 is a completely integrated portable phased array device featuring 16 channels.

Product Code: TOPAZ16

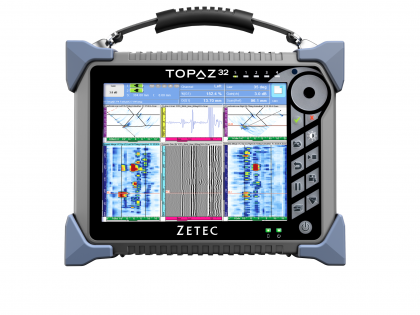

Zetec Topaz32 Portable 32 Channel Phased Array UT Instrument

Zetec Topaz32 Portable 32 Channel Phased Array UT Instrument

Zetec Topaz32 Portable 32 Channel Phased Array UT Instrument
32 channel Phased Array Ultrasonic unit with a 64-bit onboard computer and 2 dedicated UT channels.

Product Code: TOPAZ32

Zetec Topaz64 Portable 64 Channel Phased Array UT Instrument

Zetec Topaz64 Portable 64 Channel Phased Array UT Instrument

Zetec Topaz64 Portable 64 Channel Phased Array UT Instrument
Zetec Topaz64 portable Phased Array is loaded with UltraVision Touch software for faster more accurate inspections.

Product Code: TOPAZ64

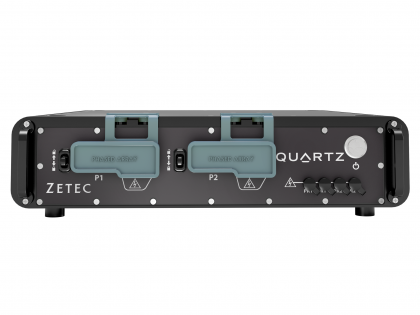

Zetec QuartZ Ultrasonic Inspection Instrument

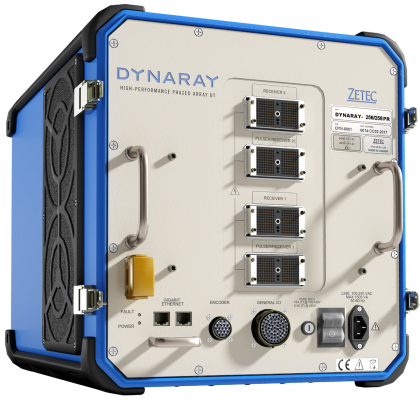

Zetec Dynaray/Dynaray Lite Ultra-high Performance Phased Array UT Instruments

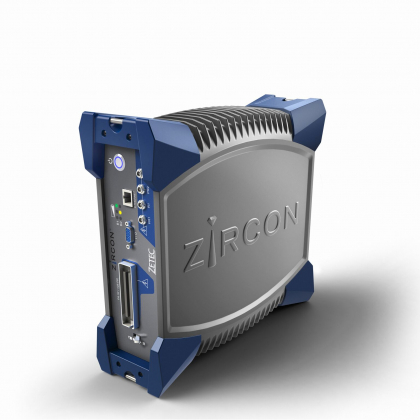

Zetec Zircon Portable High Performance Phased Array UT Instrument

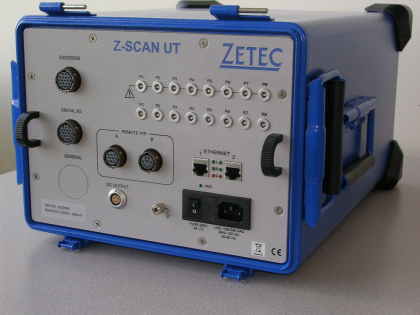

Zetec Z-Scan UT Conventional UT Data Acquisition System

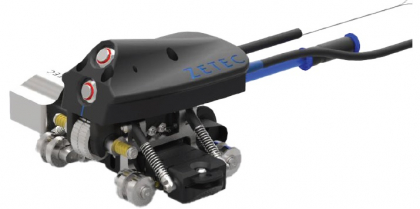

Zetec ElbowFlex Pipe Elbow Scanner UT Instrument

Zetec ElbowFlex Pipe Elbow Scanner UT Instrument

Zetec ElbowFlex Pipe Elbow Scanner UT Instrument
The ElbowFlaw ultrasonic pipe elbow scanner scans for defects and corrosion. Single hand operation and compatible with Zetec TOPAZ line.
New Product

Product Code: ELBOWFLEX

8 Products Found
