Waygate Krautkramer trueDGS Phased Array Probes (TRUEDGS-PAUT)

    Waygate Krautkramer trueDGS Phased Array Probes


    Quote Required Quote Required



    This product has been discontinued.


    • Product Codes:
      TRUEDGS-PAUT
    • Tech Support Available
    • Product Weight: 0.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description


    The cutting-edge trueDGS technology, renowned for its patent protection and advanced features, has recently expanded to encompass a fresh lineup of ultrasonic phased array probes. These innovative probes are designed to deliver superior performance, boasting enhanced flaw sizing precision, increased likelihood of flaw detection, and heightened productivity across diverse inspection tasks. Particularly advantageous for weld inspection within sectors such as oil and gas, power generation, and general fabrication, these probes represent a significant advancement in non-destructive testing capabilities.


    Applications:

    • General testing of all type of welds (for example, those that are described in EN ISO 17640: 2010), especially if more than one angle of incidence is required
    • Set-through nozzle joints

    Features

    • More accurate flaw sizing based on optimized reflection
    • One probe in the field instead
    • Much higher productivity due to time savings
    • Much higher probability of flaw detection

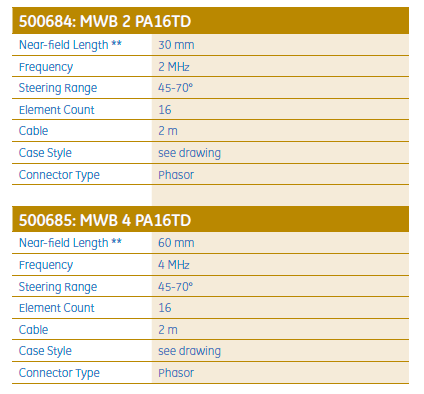

    Specs

    Additional Info
