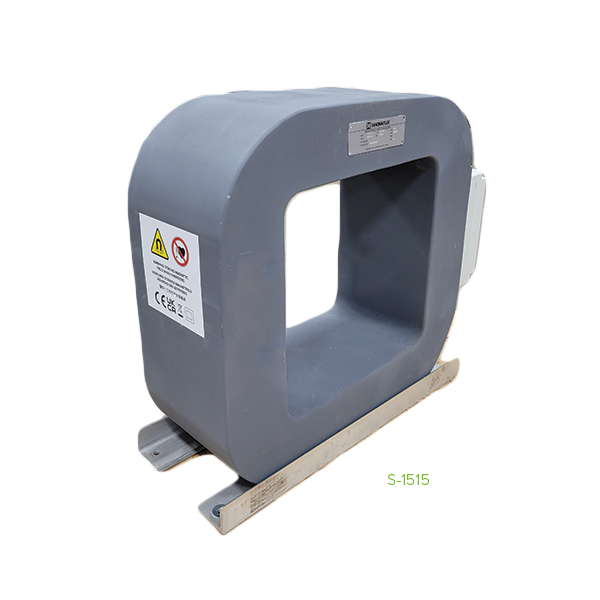

Magnaflux S-1515 Table-Top Demagnetizers (S-1515)

    Magnaflux S-1515 Table-Top Demagnetizers


    Quote Required Quote Required



    This product has been discontinued.


    • Product Codes:
      631266
    • Tech Support Available
    • Product Weight: 0.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description


    Magnaflux demagnetization units remove any residual magnetism remaining after conducting Magnetic Particle Inspection. Demagnetization of ferromagnetic parts and materials often requires a requisite to final finishing or to ready an item for its ultimate use. Industrial demagnetizing is not an easy task, unless an effective demagnetizing system is used. It is especially difficult when the magnetic field must be reduced to a very low level.

    Compact in size and ruggedly built, Magnaflux demagnetizing equipment offers a fast and efficient method for demagnetizing a broad variety of part types and sizes. All of Magnaflux's S-Series Demagnetizing Units carry the CE and UKCA marks.

    Typical Applications

    • Demagnetizing parts that have been subjected to magnetic particle inspection
    • Removing residual magnetism in parts intended for use near magnetic instrumentation
    • Demagnetizing parts with bearing or journal surfaces
    • Demagnetizing parts after contact with magnetic chucks or lifting magnets

    Features

    • Compact table-top demagnetization system
    • Waterproof and oilproof by virtue of their plastic-impregnated glass coating
    • Compact size fits into most existing test or production systems
    • Base of the coil opening may be mounted flush with the work surface using the angle support supplied, making part insertion fast and easy on the operator

    Videos

    Specs

    • 8,500 Amp Turns
    • Inside dimensions: 15 x 15 in / 38 x 38 cm
    • Size: 32.0 x 10.3 x 23.8 in / 81.3 x 26.2 x 60.5 cm
    • Weight: 481lbs / 218 kg
    • Available Voltages: 230, 400 (for 50 Hz only), 460 V
    • Available Frequencies: 50 or 60 hertz, single phase power
