Ritec RiFlexio S Digital Pushcable Color-TV-Camera (RIFLEXIOS)

    Ritec RiFlexio S Digital Pushcable Color-TV-Camera


    Quote Required Quote Required



    This product has been discontinued.

    • Product Code:
      RIFLEXIOS
    • Tech Support Available
    • Product Weight: 50.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description

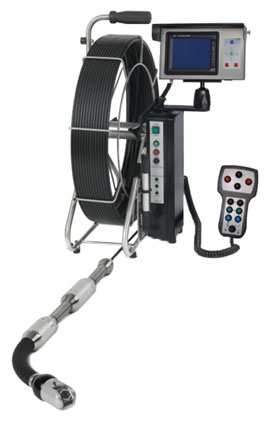

    The Ritec RiFlexio S Push Pull Camera is for pipes from ID 80-200 mm. This package consists of the Turn off-able module RiFlexio S with Pan & Tilt Camera (75112) and the Medium Stainless Steel Reel (75108), which can also be purchased separately.

    Turn off-able module RiFlexio S with Pan & Tilt Camera

    • For pipes from ID 80 - 200 mm
    • 45° bends from ID 80 mm
    • 87° bends from ID 100 mm
    • Pan angle ± 120°, pan angle incl. angel of view ± 148°
    • Push skid ID 110 mm
    Medium Stainless Steel Reel
    • Control electronic for all camera functions of the pan rotate camera in waterproof metal housing
    • Waterproof camera plugs
    • Waterproof Axle
    • 50 m (160 ft.) pushcable 10.3 mm in diameter
    • Arresting brake
    • Guide from friction reducing special synthetic material
    • Prepared for changeable digital camera heads
    • Video – out BNC, video – in BNC
    • Mains power from 100V AC up to 240V AC
    • Remote control unit
