The Spectronics QUADRAN 365SC Lamp from Spectroline features four ultra-hi-flux UV-A LEDs plus a convenient white light LED to quickly switch between fluorescent inspection and flaw location. For increased flexibility, a unique dual-intensity feature provides high/low white light output control. Options of an 8 ft cord or a 20 ft cord are available.
The lamps' broad-beam configuration produces an extremely wide coverage area of 6" (15.2 cm) at 15", making them ideal for both hand-held and in-line applications.
Lamps are tuned to provide a nominal steady-state UV-A intensity of 3,700 μW/cm2 at 15" (38 cm).
| Model | QDR-365SC |
| Standards Met | ASTM E3022-18, EN ISO 3059 |
| Nominal Steady-State UV-A Intensity | 3,700 μW/cm2 at 15" |
| Visible Light Measurement | < 0.5 foot-candle (5 lux) |

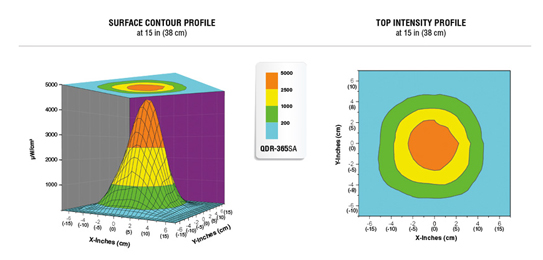

| UV-A Coverage Area at 15" at minimum 1,200 μW/cm2 | 6" (15 cm) diameter |
| Light Source | 4 UV-A LEDs, 1 White Light LED |
| Lamp Style | Pistol Grip |
| Lamp Head (WxH) | 6" x 5.5" (15 x 14 cm) |
| Length | 10" (25 cm) |
| Weight | 3 lb (1.36 kg) |
| White Light LED Intensity | Standard: 10 foot-candles (108 lux) High: 300 foot-candles (3,229 lux) |
| Power Requirement | 120VAC (available in 230V and 240V versions) |
