Name: Spectroline Quadran QDR-365A Dual Intensity Multi-LED
Brand: Spectroline
SKU: QDR-365A-20
Availability: InStock

Spectroline Quadran QDR-365A Dual Intensity Multi-LED

SKU: QDR-365A-20

$0.00

Description

The Spetronics QUADRAN™ 365 Series NDT Lamp from Spectroline features four ultra-hi-flux UV-A LEDs plus a convenient white light LED to quickly switch between fluorescent inspection and flaw location. A unique dual-intensity feature provides both high and standard UV-A and white light output for added versatility.

The lamps’ broad-beam configuration produces an extremely wide coverage area, making them ideal for both handheld and in-line applications. The Quadran's built-in fan keeps the lamp cool during use.

When the QDR-365 is in high intensity mode, the lamp provides a nominal steady-state UV-A intensity of 8,000 μW/cm²at 15" (38 cm). When switched to the standard intensity mode, the QDR-365 provides a nominal steady-state UV-A intensity of 4,500 μW/cm²at 15" (38 cm). In addition, the lamp has a high/low switch to control the white light LED output.

Additional Info

Brochure

Package Includes

Spectronics Quadran 365 Broad-Beam Lamp with high and standard UV-A light and white light
FP-550 Borofloat Filter Protector
Standard Faceplate
Heavy Duty 20 ft Cord
UVS-30 UV Absorbing Spectacles
Soft Carrying Case

Specifications

Model	QDR-365A
Light Source	4 UV-A LEDs, 1 White Light LED
Lamp Style	Pistol Grip
Lamp Head (WxH)	6" x 5.5" (15 x 14 cm)
Length	10" (25 cm)
Weight	3 lb (1.36 kg)
White Light LED Intensity	Standard: 10 foot-candles (108 lux) High: 300 foot-candles (3,229 lux)
Nominal Steady-State UV-A Intensity	Standard: 4,500 μW/cm² maximum High: 8,000 μW/cm²
Visible Light Measurement	< 2 foot-candles (22 lux)
UV-A Coverage Area at minimum 2,000 μW/cm²	Standard: 5" (13 cm) High: 6" (15 cm)
Power Requirement	120VAC (available in 100V 230V and 240V versions)

Features

Extremely large coverage area of up to 6" (15 cm)
Conveniently located rocker switches for quick and easy control of light sources
Long-Lasting UV-A lenses reduce the rate of solarization
Built-in fan keeps LEDs cool to maintain optimum light output during extended use
Rubber bumper with Borofloat® glass lens protects LEDs from damage
Rugged, modular construction allows for easy field serviceability
Lamp handle pin receptacle allows for easy attachment of various Spectroline mounting accessories for in-line inspection applications (accessories sold separately)

Product code: QDR-365A-20
Original Code: QDR-365A/20
Original Code 2
NSN

Product weight: 8.00

Product Heading content

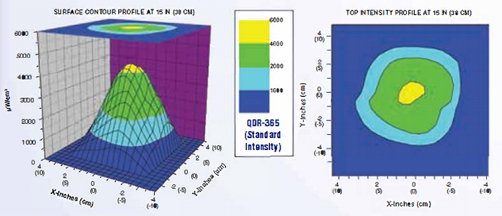

UV Switch Setting	Nominal steady-state UV-A (365 nm) intensity at 15 inches (38 cm) ➀	Visible light measurement	UV-A coverage area (at minimum 2000 μW/cm²)
QDR-365
Standard	4,500 μW/cm² maximum	< 2 foot-candles (22 lux)	5 in (13 cm)
High	8,000 μW/cm²	< 2 foot-candles (22 lux)	6 in (15 cm)

Light Source: 4 UV-A LEDs, 1 White Light LED
Lamp Style: Pistol Grip
Lamp Head (WxH): 6 x 5.5 in (15 x 14 cm)
Length: 10 in (25 cm)
Weight: 3 lb (1.36 kg)
White Light LED Intensity:

High setting: 300 foot-candles (3,229 lux)
Low setting: 10 foot-candles (108 lux)

Power Requirement AC lamp 120VAC* power cord supplied with lamp
