MagnaFlux P-70 Portable Power Pack (P-70)

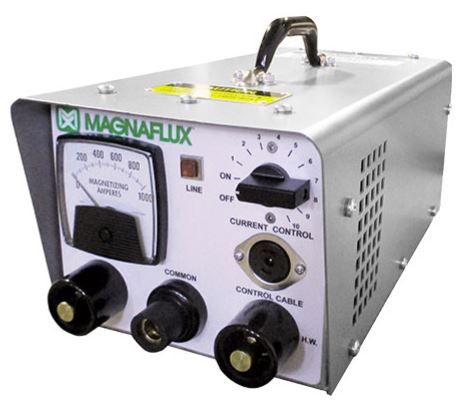

    MagnaFlux P-70 Portable Power Pack


    Quote Required


    This product has been discontinued.


    • Product Codes:
      628822
    • Tech Support Available
    • Product Weight: 0.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description


    P-Series portable power packs are convenient and economical inspection units that are used in a wide range of magnetic particle inspection applications that require only moderate power.

    These portable electromagntic current generators are ideal for inspecting large or heavy parts, in-service mobile equipment or job-site weld testing with magnetic particle inspection NDT method.

    P-Series power packs are availble in two configurations P-70 and P-1500 to meet a variety of mag particle inspection needs.

    Benefits

    • Find surface defects with AC current; switch cable connection to half wave DC (HWDC) for near-surface flaws
    • Locate defects in any direction using prods, central conductor, coil (wrap part with 3-5 turns of cable)
    • Infinitely variable current control
    • Demagnetize parts in AC mode by slowly turning the current dial to zero
    • Built-in automatic-reset circuit breaker
    • May be used as the main power source for the Mag Kit modular bench inspection system
    • All P-70 and P-1500 portable power packs come with a 15 ft / 4.5 m remote control cable (PN 626797)



    Features

    • Demagnetize your parts in AC mode by slowly turning the current dial to zero
    • Built-in automatic-reset circuit breaker\
    • May be used as the main power source for the Magnaflux MAG Kit modular bench inspection system (PN 628834)

    Specs

    • Length: 17.5" (44.5 cm)
    • Width: 9" (22.9 cm)
    • Height: 8" (20.3 cm)
    • Maximum Output*: 750 amps, AC or HWDC
    • Available Voltages: 115,230, 50 or 60 Hertz; single phase power
    • Line Current: 26 amps @ 115 VAC; 13 amps @ 230 VAC
    • Maximum Duty Cycle: 2 minutes ON, 2 minutes OFF
    • Unit Weight: 35 lbs (15.9 kg)
