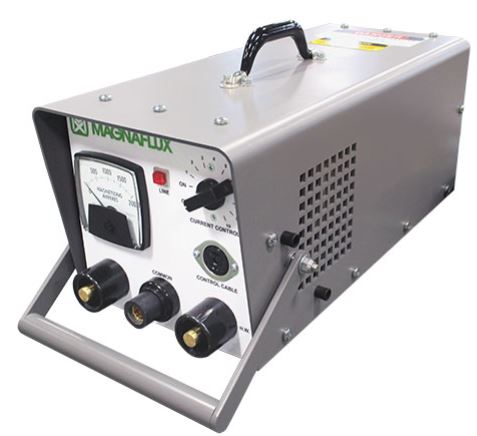

MagnaFlux P-1500 Portable Power Pack

P-Series portable power packs are convenient and economical inspection units that are used in a wide range of magnetic particle inspection applications that require only moderate power.

These portable electromagntic current generators are ideal for inspecting large or heavy parts, in-service mobile equipment or job-site weld testing with magnetic particle inspection NDT method.

P-Series power packs are availble in two configurations P-70 and P-1500 to meet a variety of mag particle inspection needs.

Benefits

• Find surface defects with AC current; switch cable connection to half wave DC (HWDC) for near-surface flaws

• Locate defects in any direction using prods, central conductor, coil (wrap part with 3-5 turns of cable)

• Infinitely variable current control

• Demagnetize parts in AC mode by slowly turning the current dial to zero

• Built-in automatic-reset circuit breaker

• May be used as the main power source for the Mag Kit modular bench inspection system

• All P-70 and P-1500 portable power packs come with a 15 ft / 4.5 m remote control cable (PN 626797)

Product Data Sheet

• Length: 22" (55.9 cm)

• Width: 9.5" (24.1 cm)

• Height: 9.5" (24.1 cm)

• Maximum Output: 1500 amps, AC or HWDC

• Available Voltages: 230,460, 50 or 60 Hertz; single phase power

• Line Current: 42 amps @ 230 VAC; 21 amps @ 460 VAC

• Maximum Duty Cycle: 2 minutes ON, 2 minutes OFF

• Unit Weight: 93 lbs (42.2 kg)

• Demagnetize your parts in AC mode by slowly turning the current dial to zero

• Built-in automatic-reset circuit breaker

• May be used as the main power source for the Magnaflux MAG Kit modular bench inspection system (PN 628834)
