The ModScope Automotive VideoProbe by Berg Engineering is lightweight with excellent performance in the field. Enhance your POD (Probability of Detection) with smooth articulation and a powerful camera during routine or special inspections.
Berg Engineering's ModScope is ideal for inspecting the complex geometries common to the automotive industry.

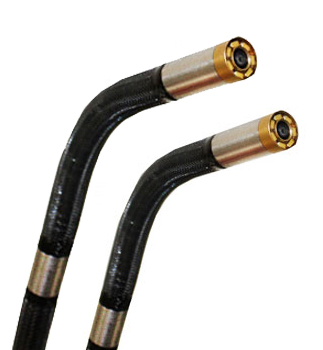

Durable, Articulating Probes
The Modscope 6mm and 8mm cameras utilize one megapixel for a clear, precise image. Image/video resolution is crisp and clear with 1280x720 pixels. The camera can zoom in and out 4x to view possible defects in greater detail. For added durability, the probe is protected by a 42mm buffer protection device between the probe and handle.
Utilize the damping-type positioning and the probe-locking feature to position the probe as needed without hassle. Probes have 360° all-way articulation with a maximum bending angle of 170°. The ModScope Automotive VideoProbes offer an IP67 6mm or 8mm diameter in a length of 1.0m. Probes also have a choice of light source, Super LED (40,000 lux) or Super LED (55,000 lux). The lens available is frontview only.
| Camera Diameter | 8mm | 6mm |
| Illuminance | Super LED: 55,000 lux | Super LED: 40,000 lux |
| Probe Length & Bending Angle |
1.0m/150° | 1.0m/170° |
| Field of View | 120° | |
| Depth of Field | 10-100mm | |
| Viewing Directions |
Front View | |
| Probe Positioning |
Damping positioning | |
| Articulation | 360° joystick control with articulation lock | |
| Camera Pixels | 1 megapixel | |
| Image Resolution |
1280x720p |
|
| Photo/Video Format |
JPEG/MOV |
|
| Tube Durability |
5 layers of wear-resistant tungsten; 42mm buffer device between tube and handle |
|
| Environmental |
IP67 Dust Proof and Waterproof |
|
