MagnaFlux CMD-2060 Power Pack Electromagnetic Current Generators with AC, HWDC & FWDC Magnetization (CMD-2060)

    MagnaFlux CMD-2060 Power Pack Electromagnetic Current Generators with AC, HWDC & FWDC Magnetization


    Quote Required Quote Required



    This product has been discontinued.


    Share this product
    • Product Codes:
      CMD-2060
    • Tech Support Available
    • Product Weight: 0.00
    HAVE A QUESTION?
      Call:   1-847-577-3980
      Send an Email
       Hours:   8:00 am to 4:30 pm CST

    Description

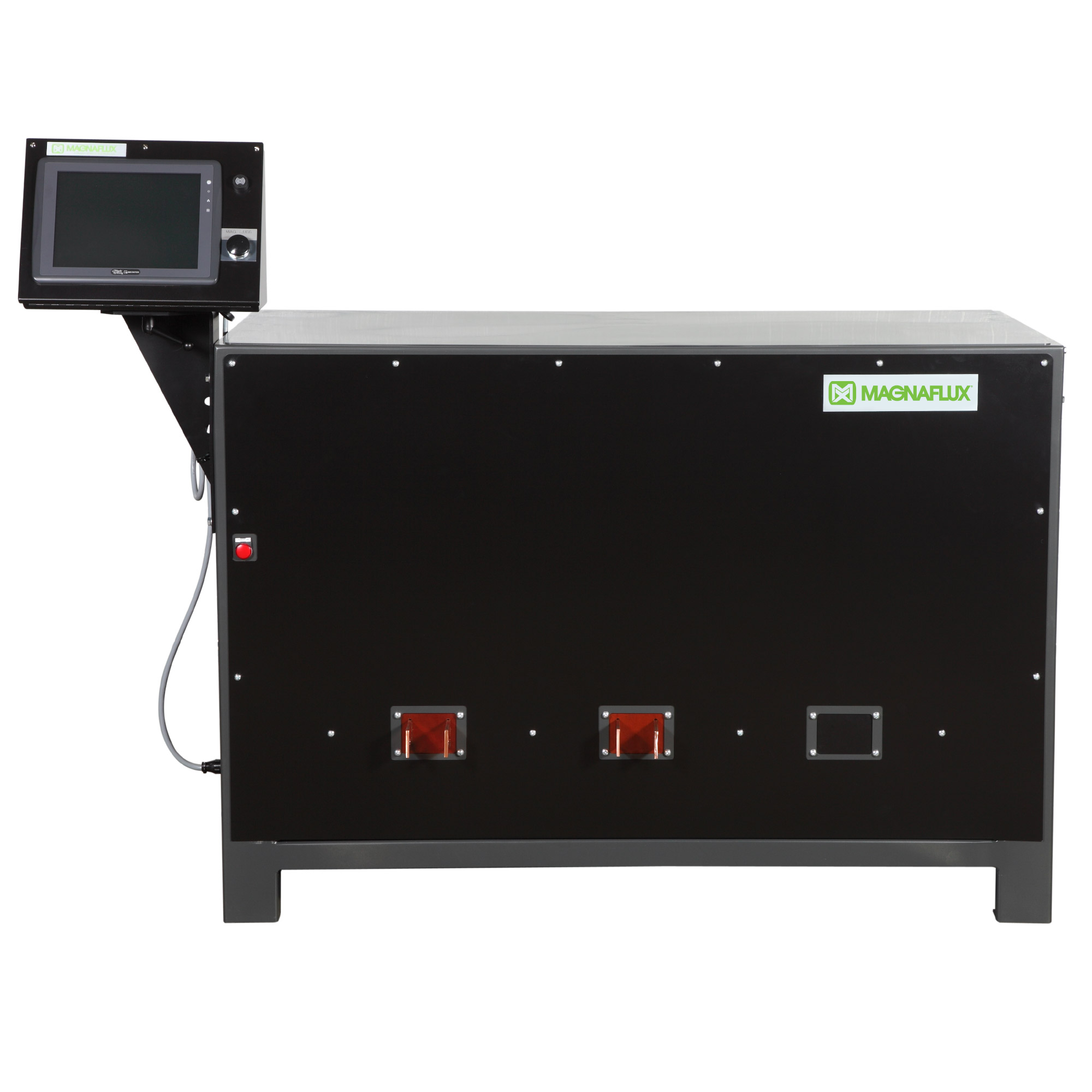

    The CMD-2060 is Magnaflux's multi-directional stationary power pack for mag particle testing. This current generator can easily be integrated with custom handling equipment or used to update old horizontal wet bench units. The CMD-2060 unit comes with 2 outputs. The multi-directional magnetization feature finds defects in all orientations with just one cycle and the outputs can be independently adjusted to balance the magnetic field intensity.

    Features

    EXTERIOR

    • Color Touch Screen Interface
    • Visual/audible current assurance alarms w/ log
    • Large, easy-to-ear digital ammeter displays
    • Independent X, Y, Output Current Type Selection
    • Daily reminder alarms for UV light, visible light and bath concentration
    • 50 customer programmable recipes
    • Automatic piece parts counter

    INTERIOR

    • PLC control advanced technology; reduce components and increase reliability
    • Modular digital solid state circuitry
    • Quick disconnect wiring
    • Liquid Resistant panels, allow ventilation while inhibiting fluid intrusion



    Specs

    • 6,000 amp FWDC / HWDC or 5,000 amp AC multidirectional output; current capability
    • Multidirectional power supply - Two outputs
    • Duty Cycle 0.5 seconds on, 10 Seconds off (5% with Maximum of 5 seconds)
    • All Ratings based on 30 Feet of double 4/0 Cable
    • Two Independently variable current controls
    • Available Voltages: 380, 415, 460, 50 or 60 hertz, three phase power
    • 60” (153 cm) x 31” (79 cm) Foot Print, allow 24”(61 cm) per side for ventilation
    • Rapid Reversing FWDC or decaying AC Demagnetization

    Additional Info

    Product Data Sheet
