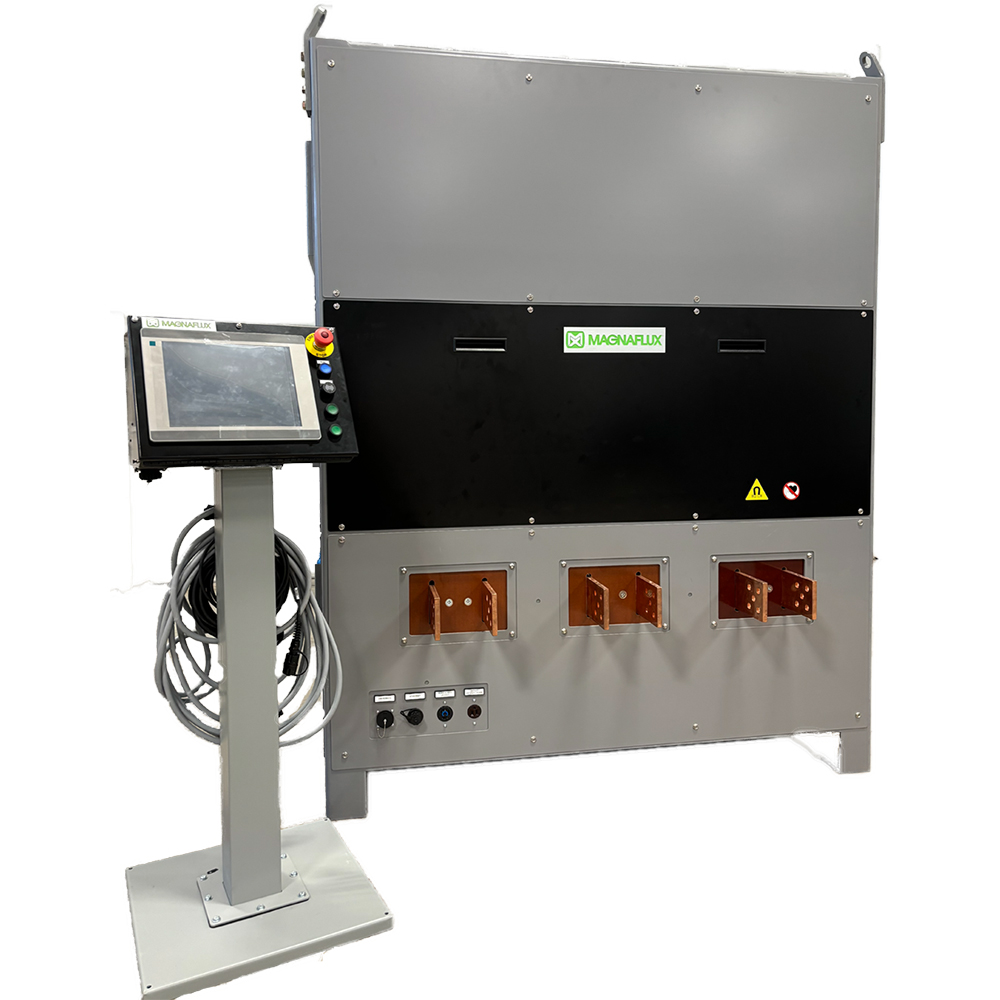

MagnaFlux CSV-10 Power Pack Electromagnetic Current Generator

Magnaflux recognizes that certain parts are unsuitable for standard units due to size, special handling requirements, or optimal dry processing needs. The CSV-10 addresses these challenges by accommodating oversized parts. It enhances efficiency with three separate outputs, reducing processing time, and includes a pulse feature for comprehensive coverage of larger areas. These units utilize a 3-phase rectified full-wave DC output system.

Benefits

• Most economical way to create a high magnetizing current with minimal power requirements

• For parts too large for traditional wet horizontal units or parts that need special handling

• Increase speed of process with three independent outputs that can cycle multiple times

• Supervisor security lock to ensure repeatability of inspection

Product Data Sheet

• 10,000 amp 3-phase rectified to FWDC output

• Reversing DC Demag-Ultra Low Frequency on all 3 outputs

• Three Independent Bus Bar Outputs

• Current capability rated using 30 feet of 1,000 kcmil cable.

• Duty Cycle 0.5 seconds on, 20 Seconds off (2.5% with maximum of 2 seconds)

• Available Voltages: 380, 415, 460, 575, 50 or 60 hertz, three phase power

EXTERIOR

• Three Independent Current Controls

• One to Four Cycles (to rotate through the multiple vector output)

• Current Assurance Indicators

• Three Large, easy to read Digital Ammeter Displays

• Remote Mag Receptacle (Use with EV6000)

• 115 Volt Accessory Outlet

INTERIOR

• PLC control advanced technology; reduce components and increase reliability

• USB port for computer interface

• Modular digital solid state circuitry

• Quick Break Circuitry
