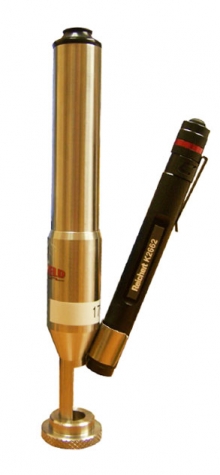

Teleweld Microscope

The Teleweld Microscope is a highly portable and free-standing instrument for reading Brinell impressions. With an aluminum housing, the Microscope is also lightweight and durable. The Microscope also features a shock-absorbing textured grip. The high quality optics of the 10x eyepiece combined with the 2x objective provide the user with a 20x total magnification. The eyepiece has 22 mm FOV and a foldable rubber eye guard. An easy-to-read reticle has a 0-5 mm linear scale in 0.1 mm increments. A stainless steel reversible nosepiece allows the user to use the Microscope free-standing or flip it to gain access to hard-to-reach areas.

The Teleweld Microsope is factory-calibrated for magnification and focus. The Microscope also includes an LED light source with an adjustable beam that can attach to the Microscope for hands-free use, but can also operate under normal room or outdoor lighting conditions.

Brochure

• Rugged and free-standing
• Eyepiece with 22 mm FOV and foldable rubber eye guard
• 2x magnification doublet housed in aligned and calibrated aluminum retainer
• Easy to read glass reticle with 0-5 mm linear scale
• Aluminum housing with shock-absorbing textured grip
• Can be used in normal room or outdoor lighting conditions
