PH Tool USAF General Purpose Eddy Current Standard, 4340 Steel (USAFEC.CS)

    PH Tool USAF General Purpose Eddy Current Standard, 4340 Steel


    Quote Required Quote Required



    This product has been discontinued.


    • Product Codes:
      USAFEC.CS
    • Original Code:
      USAFEC-CS
    • Tech Support Available
    • Product Weight: 0.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description

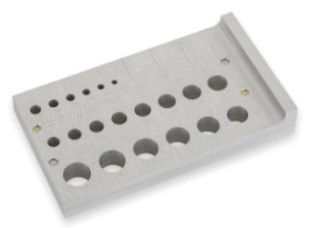

    U.S. Air Force General Purpose Eddy Current Standard. A (3) plate assembly containing (20) fastener holes with a total of (66) EDM notches in various locations.

    • Overall Dimensions: 1.06" thick x 4.0" wide x 7.0" long
    • Alloy: 4340 Steel, bare
    • (20) Fastener Holes from .156 to .750" diameter.
    • (40) Corner notches, (20) Bore notches, (4) Surface notches (1) Tapered notch, (1) Radius notch
    • All EDM notches are .004 ± .001 wide
    • Manufactured IAW U.S.A.F. Tech Order 33B-1-1, Figure 4-39.
    • P/N 7947479-10-4340
