Magnaflux Universal WE Multi-Directional Magnetic Wet Bench (UNIVERSAL-WE)

    Magnaflux Universal WE Multi-Directional Magnetic Wet Bench


    Quote Required Quote Required



    This product has been discontinued.


    Share this product
    • NEW Product
    • Product Codes:
      UNIVERSAL-WE
    • Tech Support Available
    • Product Weight: 0.00
    HAVE A QUESTION?
      Call:   1-847-577-3980
      Send an Email
       Hours:   8:00 am to 4:30 pm CST

    Description


    The Universal WE Magnetic Wet Bench is a multi-directional magnetic wet bench engineered to fully magnetize the surfaces of parts up to 35 inches long in a single application. This capability can potentially reduce inspection time by half, as it allows for examination in both directions simultaneously. The Universal WE provides 200 to 2,000 Amps AC for contact shots and offers 1,500 to 15,000 Amp-turns AC for coil shots. The two outputs can be independently adjusted to control each magnetic field, whether circular or longitudinal.

    Faster part processing
    • Double your inspection speed by magnetizing parts in a single shot
    • Fully inspect longer parts, up to 35.4 in / 90 cm, without requiring an auxiliary coil
    • Speed up part processing with a large automated surface shower
    Advanced process control
    • Maximize consistency between tests with 1,000 customer-programmable techniques
    • Prevent accidental and unauthorized alterations by implementing multiple user profiles with different levels of control to accommodate various operator experience levels
    • Receive visual alerts when produced amperage is 90% or less than set amperage
    Real world dependability for minimal downtime
    • Siemens PLC provides reliable controls and off-the-shelf replacements
    • Rely on our industry leading warranty with best in-class service delivered by a global network of trained Magnaflux authorized service centers
    • Minimize downtime with standard spare parts package
    Easy to use and maintain
    • Make quick operational adjustments using the simple, user-friendly operator interface with touch-screen controls
    • External pump system provides fast access for easy cleaning and service

    Features

    • 60% duty cycle at 50% power output with a max of 6 seconds on and 4 seconds off
    • Large surface shower to bathe entire part automatically with mag shot
    • Siemens PLC • Advanced touch-screen operator interface
    • 1,000 customer-programmable techniques
    • CE certified
    • Safety stroke of 7 mm to prevent pinch point injuries
    • User-controlled security systems with password protection, supervisor locks and customizable operator access profiles
    • External pump system for particle bath agitation, circulation and application
    • Adjustable mag shot time
    • Two large, easy-to-read, digital ammeters confirming amperage sent through the part
    • Dimmable UI display helps reduce operator eye fatigue and keeps ambient light below required minimums
    • Current control circuitry maintains the actual current value during magnetization in accordance with the selected value
    • Receive visual alerts when produced amperage is 90% or less than set amperage
    • Current flow diagnostic system and integrated AC demagnetization for both magnetizing circuits
    • Automatic sequencing mode to bathe and magnetize part according to pre-set parameters
    • Meets the requirements of ASTM E1444, ASTM E709 and ASTM E3024

    Videos

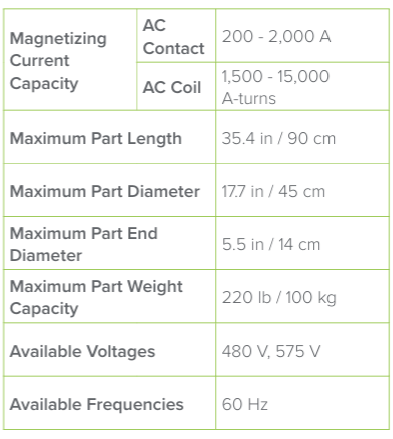

    Specs

    Additional Info

    Product Data Sheet
