Labino TrAc Finder Kit with TrAc Light PRO (TLP-KIT)

Manufactured in Sweden, the Labino TrAc Finder Kit possesses the most powerful ALS lamp with the widest beam on the market. The PRO kit has the longest running time. The kit gives crime fighters the tools necessary for investigations and also has NDT applications.

The Labino TrAc Finder PRO Kit includes 1 MPXL UV Lamp TrAc Light PRO, 4 filters (UV/general/blue/green), 4 goggles (UV/yellow/orange/red), 3 camera contrast filters (yellow/orange/red), 1 charger and 1 carrying case. The TrAc light PRO has a battery life of 2.5 hours, a hand unit weight of 1.1 kg (2.4 lbs), and a battery unit weight of 2.4 kg (5.3 lbs) and is available in a spotlight beam or midlight beam. The spotlight beam has an intensity of 45,000 μW/cm^2 and the midlight beam has an intensity of 8,000 μW/cm^2.

It is big – It is clumsy – It is ugly! But it fights the crime better than anyone!

The TrAc Finder™ is the most powerful ALS lamp with the widest light beam available on the market. The TrAc Finder meets the needs of criminal investigators who need an intense ALS with a wide light beam. The PRO kit offers the longest running time.

 Included in the TrAc Finder TrAc Light PRO kit:

• 1 MPXL UV Lamp – TrAc Light PRO:
  • Battery running time: 2.5 hrs +/-5 %
  • Weight: Hand unit 1.1 kg (2.4 Ibs), battery unit 2.4 kg (5.3 Ibs)
  • The lamp is available in 2 beams: Spotlight  ≈ 45 000 μW/cm2 at 38 cm Midlight  ≈ 8 000 μW/cm2 at 38 cm

• 1 Charger
• 4 Filters:  UV /General / Blue / Green
• 4 Goggles: UV / Yellow / Orange / Red
• 3 Camera Contrast Filters with Adjustable Frame (Yellow, Orange and Red)

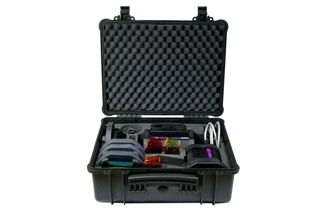

• 1 Carry Case with Customer Designed Interior (IP67)

Country of origin: Sweden

• TrAc Light PRO - Data Sheet
• Kit - Data Sheet
• Filters - Data Sheet
• Goggles - Data Sheet

TrAc Light PRO Specifications

Midlight

• Distribution angle (beam) approx. 20°
• Irradiance ≈ 8 000 μW/cm2=at 38 cm (15”)

Spotlight

• Distribution angle (beam) approx. 3.5°
• Irradiance ≈ 45 000 μW/cm2=at 38 cm (15”)

Voltage

• Charger: 100-240 VAC
• Internal Battery: 12/24 VDC
• Input Power: 43 W
• Output Power: 35 W

Battery

• 14.8 V Li-ion accumulator
• Running time: 2.5 hr +/- 5%
• Charging time: approx. 6 hrs
• Lamp shipped fully charged
• Charge only with the Labino® TrAc Light PRO charger
• Charge from mains via wall socket charger
• Can be operated during charging

Weight:

• Hand unit 1.1 kg (2.4 lbs),
• Battery unit 2.4kg (5.3 lbs)

Mechanical Stability (bulb): IEC810

Service life (bulb): approx. 2 000 hrs

Wavelength: UV-A, peak at 365 nm

Start-up time: full power after 5-15 sec

Material in housing: anodized aluminium, plastics PA6-30

The housing is via pre milled slots prepared for mounting devices

CE, ETL/cETL approved

IP65 classified, dust and temporary water jetting proof
