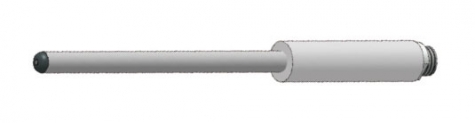

Waygate Krautkramer Straight Metal Handle Eddy Current Probe, Absolute

The Waygate Technologies Krautkramer Straight Metal Handle Eddy Current Pencil Probes (Absolute), Baker Hughes business products (formerly GE Inspection Technologies), are ideal for limited access areas and systems scanning. This probe comes in frequency options of 200 kHz, 500 kHz, 2 MHz, and 6 MHz. The Straight Metal Handle offers lengths of  38 mm (1.5") or 76 mm (3"). This handle also offers a variety of tip diameters, such as 2.34 mm, 3.30 mm, and 4.45 mm. Probes have Microdot connectors.

These probes are fitted with stainless steel handles, 25.4 mm (1") to 6.4 mm (.25") in diameter, that promote good clamping.The Straight Metal Handle probes identified with Nonferrous (NFe) or Ferrous/Nonferrous (Fe/NFe) may be used on any suitable conductive material when used in conjunction with an Impedance plane instrument.

Delrin probes are color-coded so as to indicate their center frequency as follows:

Red = 200kHz

Yellow = 500kHz

Blue = 2MHz

Green = 6MHz

GE Eddy Current Probe Catalog
