Foerster SIGMATEST Eddy Current Conductivity Meter (SIGMATEST)

    Foerster SIGMATEST Eddy Current Conductivity Meter


    Quote Required Quote Required



    This product has been discontinued.

    • NEW Product
    • Product Code:
      SIGMATEST
    • Tech Support Available
    • Product Weight: 10.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description

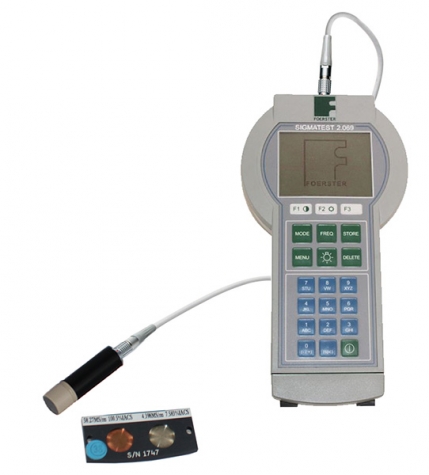

    The Foerster SIGMATEST 2.069 Eddy Current Conductivity Meter is a portable material testing device for determining the electrical conductivity of non-ferromagnetic metals, including aluminum, copper, nickel, zinc, titanium, among others. It determines physical and technical material properties and is usually used in applications for evaluating the quality of manufactured products, testing material composites, sorting metals, alloys, and scrap metal. It comes as a kit with either an 8 mm or 14 mm straight probe or 14mm angled probe.

    Measurement & Standards

    The SIGMATEST is a highly sensitive and well-rounded instrument using five different excitation frequencies at 60, 120, 240, 480, 960 kHz. It offers a high degree of measuring accuracy and reliability of results and can be calibrated to IACS with conductivity certificates traceable to PTB and NIST. Operating at a high frequency of 960 kHz, it can measure thin materials with precision. The integrated temperature compensation standardizes measured values of electrical conductivity to 20°C.

    SIGMATEST Applications

    The SIGMATEST determines both physical and technical material properties of test objects in quality assurance applications. It can also test materials that are in post-production that require analysis of their metallurgical properties, including:

    • Determining physical and technological material properties
    • Monitoring the condition of highly stressed parts
    • Material-mix testing
    • Sorting of metals and alloys
    • Scrap sorting
    • In-process inspection in industrial, metallurgical and metalworking plants
    • Quality control
    • Aircraft maintenance
    • Heat damage analysis
    • Verification of the age-hardening condition of aluminum used in aircraft construction

    NSN #: 6635-01-420-5318

    Features

    • Easy operation
    • Five measuring frequencies: 60, 120, 240, 480, 960 kHz
    • Internal and external temperature compensation
    • Measurement possible up to 0.5 mm distance from the test item
    • Measurement range from 0.5 to 65 MS/m (1 - 112 % IACS)
    • 20 measurements per second
    • Multilanguage operating system
    • Remote control via RS-232 port or Ethernet port
    • Robust device design for operation on site

    Videos

    Specs

    Measurement range: 0.5 to 65 MS/m (1 to 112 % IACS)
    Absolute accuracy - instrument only: +/-0.5 % of measured value
    Resolution: +/-0.1 % of measured value
    Distance correction: Up to 500 μm (0.020 inch)
    Operating frequencies: 60, 120, 240, 480, 960 kHz
