Magnaflux SF-Series Demagnetizers Free-Standing, Continuous Duty Demagnetizers (SF-SERIES)

    Magnaflux SF-Series Demagnetizers Free-Standing, Continuous Duty Demagnetizers


    Quote Required Quote Required



    This product has been discontinued.


    • NEW Product
    • Product Codes:
      SF-1515
    • Tech Support Available
    • Product Weight: 0.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description


    Magnaflux demagnetization units effectively eliminate residual magnetism following Magnetic Particle Inspection. The enhanced design enables continuous coil operation without the need for a duty cycle cool down period or risk of overheating, leading to faster processing for various part sizes and reduced wear on electrical components. For customers utilizing conveyors, integration requires no additional components.

    Demagnetizing ferromagnetic parts and materials is often necessary for final finishing or preparing an item for its intended use. Industrial demagnetization can be challenging without an effective system, particularly when the magnetic field needs to be reduced to a very low level.

    Compact in size and ruggedly built, Magnaflux demagnetizing equipment offers a fast and efficient method for demagnetizing a broad variety of part types and sizes.

    APPLICATIONS:

    • Demagnetizing parts that have been subjected to magnetic particle inspection
    • Removing residual magnetism in parts intended for use near magnetic instrumentation

    Features

    • Durable construction
    • Heavy-duty, industrial protective coating
    • Simple on/off electrical control
    • Continuous duty demagnetization

    SF-1515 Optional Features

    • Track and Carriage slides parts easily through the demagnetizer to check parts faster with less part handling (reduces the inside dimensions slightly to 15.0 W x 11.9 H in; 38.1 x 30.2 cm)

    SF-2824 Optional Features

    • Track and Carriage slides parts easily through the demagnetizer to check parts faster with less part handling (reduces the inside dimensions slightly to 28.0 W x 21.5 in H; 71.1 x 54.6 cm)

    Videos

    Specs

    SF-1515

    • 8,500 Amp Turns (Minimum)
    • Inside dimensions: 15.0 x 15.0 in (38.1 x 38.1 cm)
    • Footprint: 34.0 L x 33.0 W x 54.0 H in (86.4 x 83.8 x 137.2 cm)
    • Weight: 574 lb. (260.4 kg)
    • Available Voltages: 230, 380, 400, 415, 460, 575 V
    • Available Frequencies: 50 or 60 Hz

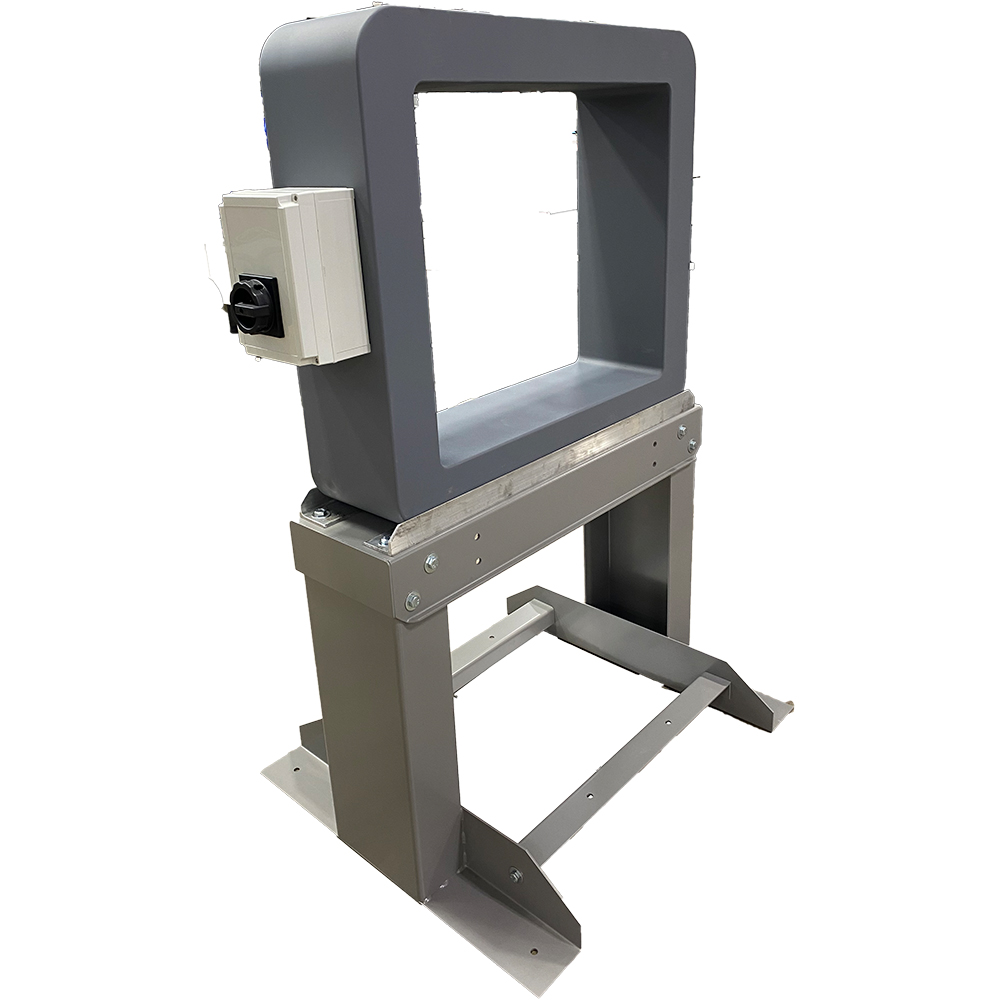

    SF-2824

    • 8,000 Amp Turns (Minimum)
    • Inside dimensions: 28.0 W x 24.0 H in (71.1 x 61.0 cm)
    • Size: 34.0 L x 46.0 W x 63.0 H in (86.4 x 116.8 x 160.0 cm)
    • Weight: 845.0 lb. (383.3 kg)
    • Available Voltages: 380, 400, 415, 460, 575 V
    • Available Frequencies: 50 or 60 Hz
