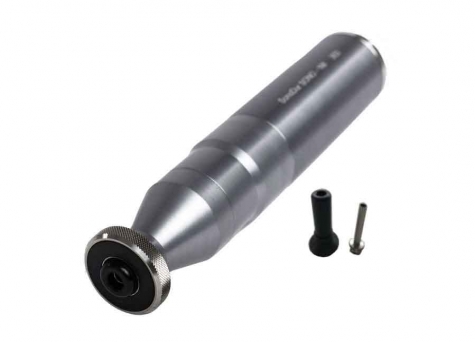

NewSonic Motor Probe with Switching Sleeve and Screwed Switching Sleeve (NS-MOTOR-PROBE)

Motorized Probes from NewSonic are ideal for testing the hardness of delicate surfaces, producing an equal distribution of force at all times. NewSonic's Motor Probes come in test forces of 1N, 3N and 8.6N (0.1 kgf, 0.3 kgf and 0.9 kgf). Motor Probes have a very narrow tolerance range and take measurements at the push of a button. The motorized measure process ensures consistency in measurements and ideal for surfaces that cannot take a lot pressure when compared with manual probes.

Motor Probes offer extremely reliable and repeatable measurements. These probes are ideal for thin and delicate surface layers, such as pistons and plating used in the printing industry.

All UCI measurement probes are designed to be highly precise and provide stable and informative measurements. All of NewSonic's motorized measurement probes are designed to be highly accurate and guarantee repeatable results that will remain stable over a long period.

The integrated motorized controls allow measurements to be made with virtually zero influence from the operator. The time period for the test load can be set between 1 and 99 seconds. The special force application properties (freely selectable penetration time point with constant test force) means that the visual assessment of Vickers indentations can also be performed at a later point.  Material hardness is tested using the UCI (Ultrasonic Contact Impedance or modified Vickers procedure) method. Measurements include the entire range of the traditional Vickers hardness scale.

Both the SonoDur 2 and SonoDur-R 'Rack' are compatible with NewSonic Motor Probes. They can be adapted to most devices using a standard USB interface.
