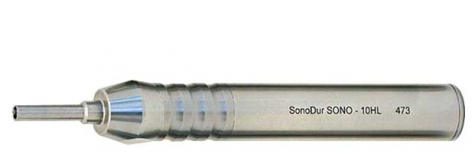

NewSonic Handheld UCI Hardness Measurement Probe Long Version (NS-LONG-HH-PROBE)

    NewSonic Handheld UCI Hardness Measurement Probe Long Version
    Starting at:

    $4,982.00 1. Quote Required



    This product has been discontinued.

    • Product Code:
      NS-LONG-HH-PROBE
    • Tech Support Available
    • Product Weight: 3.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description

    The Long Handheld UCI Probes from New Sonic are reliable and provide accurate measurements for hardness testing. The probes are ideal for general, handheld testing procedures for production, maintenance and quality assurance. NewSonic's long handheld probes are the right solution for quick measurements for a breadth of different measurement points.

    The long version of the handheld probe enables you to reach difficult measurement positions. The long handheld probe is meant for challenging material geometries such as at the base of gear teeth or similar.

    The material's hardness is tested using the Ultrasonic Contact Impedance (UCI) method. The long handheld probes work with the SonoDur3 as well as the SonoDur2 and SonoDur-R 'Rack' and can be setup with most devices using a standard USB interface.

    Precise measurement is the goal. All of NewSonic's long handheld measurement probes are designed to be highly accurate and guarantee repeatable results that will remain stable over a long period. Measurements include the entire range of the traditional Vickers hardness scale. The long handheld measurement probes can measure hardness on metal, industrial ceramic and, depending on the circumstance, highly heterogeneous materials, such as cast iron (spheroidal graphite cast iron GGG50).

    If you require probes with different dimensions or test loads, contact our knowledgeable sales engineers and we will work directly with you to get you the probe you need.

    Specs

    Model NS-11104 NS-11116 NS-11105 NS-11110
    Load 10N - 1kgf 30N - 3kgf 49N - 5kgf 98N - 10kgf
    Housing Stainless Steel
    Length 212.7 mm
    Tip Diameter 1.7 mm
    Shaft Diameter 25 mm
