Labino MidBeam 2.0 UV LED Aerospace (MIDBEAM-2-0-AERO)

    Labino MidBeam 2.0 UV LED Aerospace




    DISCONTINUED

    This product has been discontinued.


    • Product Codes:
      L2511
    • Tech Support Available
    • Product Weight: 3.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description

    '

    Only 1 L2511 Left In-Stock

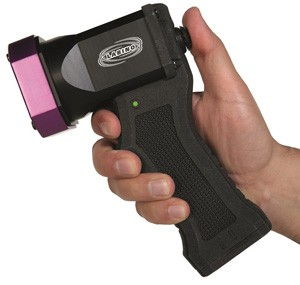

    MidBeam 2.0 is an extremely robust hand held lamp especially designed for use by heavy industries with very difficult operating environments.

    The light is compact in size, with four LEDs in a housing diameter of just 3.15 inches (8 cm)!

    Aerospace Version: The MidBeam 2.0 Aerospace differs from the Standard version as follows:
    A. The Aerospace version does not have a white light LED for after inspection.
    B. The intensity of the Aerospace version is adjusted to never exceed 4 500 μW/cm2 at 15 inches.
    C. The battery life of the Aerospace version is in excess of three hours..

    Unique Features of MidBeam 2.0:

    • IP68 Waterproof classification: Solids and liquids that often find their way into a light causing UV LEDs to burn cannot penetrate a MidBeam 2.0 unit.
    • Battery indicator: Four colors, green, yellow, orange and red signal the user when the batteries are over 75%, 50-75%, 25-50% and below 25% charged respectively. With less than 10% left the red signal starts flashing.
    • Operates while charging batteries: The battery version can operate like mains while charging the batteries via a connector at the back of the head.

    Each light consists of 4 LEDs offering an extremely even beam. The switch located at the back of the head provides instant power.

    It is easy for the battery version to switch batteries. The location of the batteries (inside pistol handle) makes the ergonomics of the unit stable. Four batteries are provided and two are needed to operate.

    MidBeam 2.0 Aerospace is classified as a Risk Group 3 (High Risk) in accordance with IEC / SS-EN 62471.

    Specs

    Technical Specifications

    Light Source and Light Output

    • 4 UV LEDs peaking at 365 nm, 1 White Light LED (Optional)
    • Intensity Standard Version: > 4 500 μW/cm� at 38 cm (15'')
    • Intensity Aerospace Version: < 4 500 μW/cm� at 38 cm (15'')
    • Intensity Aerospace RRES 90061 ≈ 2 600 μW/cm� at 38 cm (15'')
    • White light output from UV source: ≈1 Lux� / 0.09 Foot Candle (380-780 nm)
    • No UVB

    Battery (Spuulied with 4 batteries)

    • 2200 mAh Lithium-Ion, 3.7 V
    • Running time Standard: Approximately 1.5 hours
    • Running time Aerospace: Approximately 3 hours
    • Running time Aerospace RRES 90061: Approximately 3 hours
    • Charging time: Approximately 8 hours
    • Requires two batteries to operate – Supplied with two extra
    • Equipped with a current regulator to keep intensity stable when the battery fades

    Charger (Supplied with 3 Chargers)

    • 100-240 VAC charger for use from an electrical outlet. Two batteries can be charged simultaneously
    • 12 V charger for use in a vehicle

     Power Supply for charging while operating:

    • 100-240 VAC
    • 50-60 Hz
    • Out: 12V DC 3A/40W

    Additional Information

    • Weight battery version:: without battery: 688 gr (8.27 oz); with battery: 781 gr (11.55oz)
    • Housing diameter: 80 mm (3.15'')
    • Instant-on operation with full intensity reached immediately
    • Material in housing: anodized aluminium
    • Material in handle: PA6, 30
    • Mechanical cooling system

    Certification

    • CE Marked
    • IP68 classified
    • Complies with ASTM E3022-2015
    • Aerospace RRES 90061 version complies with Rolls Royce engineering specification RRES 90061
