    This product has been discontinued.

    Description

    Available with UL/CSA Certification

    The MD-2030 multi-directional magnetic bench delivers 2,500 amps of Alternating Current, 3,000 amps of Half Wave Direct Current, and 3,000 amps of single-phase Full Wave Direct Current, enabling efficient multidirectional magnetization. This allows for the detection of defects in any orientation with just one magnetic cycle.

    The two outputs (contact and Flux-Flo coil) each offer AC, HWDC or 1-Phase FWDC, and are independently adjustable to balance the magnet field intensity.

    Maximize part throughput
    • Increase efficiency by magnetizing a part in all directions simultaneously
    • Reduce processing time with operatorenabled automatic Double-Mag Shot
    • Generate 300+ shots per hour at maximum unit output
    • Optional Database System with advanced touch screen operating interface and barcode scanner eliminates time spent on manual inputs
    • Optional automated conveyer system minimizes part handling by transporting parts directly to the inspection booth
    Easy to use and maintain
    • Easily make operational adjustments with the intuitive and user-friendly operator interface featuring touch-screen controls
    • External pump system provides fast access for easy cleaning and service
    Advanced process control
    • Assure testing accuracy and repeatability with direct amperage control and fluctuation mitigation
    • Ensure consistent testing by utilizing up to 1,000 customer-programmable techniques
    • Track productivity using the automatic parts counter
    • Prevent accidental and unauthorized alterations with multiple user profiles and varying tiers of control for a range of operator experience levels
    • Daily reminder alarms help ensure measurements are compliant with process specification requirements
    Real-world dependability for minimal downtime
    • Allen-Bradley PLC offers dependable controls and readily available replacement parts
    • Advanced agitator system helps prevent blockages and clumping by keeping magnetic particles well suspended
    • Rely on our industry leading warranty with best in-class service delivered by a global network of trained Magnaflux authorized service centers
    Additional Info

    Product Data Sheet

    Related Accessories
    Package Includes

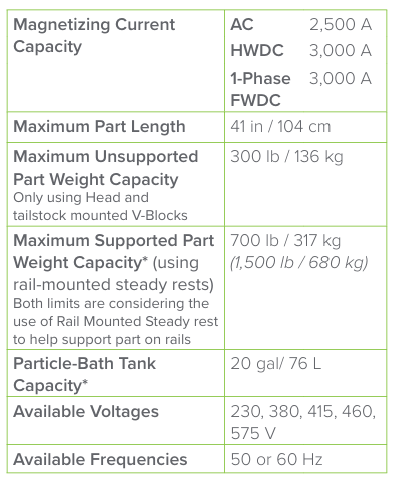

    Specifications

    Features
    •  5% duty cycle of 0.5 seconds on, 10 seconds off at maximum output
    • Allen-Bradley PLC
    • Control circuit feedback loop for amperage regulation and repeatability
    • Advanced touch-screen operator interface
    • 1,000 customer-programmable techniques
    • Automatic parts counter
    • User-controlled security systems with password protection, supervisor locks and customizable operator access profiles
    • Daily reminder alarms to verify UV light, visible light and particle bath concentration for process control requirements
    • Dimmable UI display helps reduce operator eye fatigue and keeps ambient light below required minimums
    • External pump system for particle bath agitation, circulation and application
    • Integrated rapid-reversing FWDC or decayingAC demagnetization with 1-touch control
    • Low-voltage output minimizes electrical exposure for operator safety
    • Adjustable mag shot time from 0.5 to 2 seconds
    • Automatic Double-Mag Shot with 1-touch control
    • Mag-shot-activating front push bar with 1-touch control to enable/disable this feature
    • Two large, easy-to-read digital ammeters confirms amperage sent through the part
    • Current assurance alarm with visual and audible alerts and alarm log to confirm magnetizing current delivery
    • Solid state circuitry increases lifetime and performance of machinery
