Labino UVG3 LED UV Torch (LABINO-UVG3)

    Labino UVG3 LED UV Torch




    DISCONTINUED

    Click Here to view the product that replaced this product.

    This product has been discontinued.
    Click Here to view the replacement product.


    • Product Codes:
      L600
    • Tech Support Available
    • Product Weight: 4.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description


    UVG3 1.0 Single Torches Are No Longer Availabe.
    Please purchase UVG3 1.0 Kits or UVG3 2.0 Single Torches Instead.
    (Affected Part numbers include: L600, L601, L602, L606, L608, L620, L621, L622, L623, L630, L631, L632, L633)

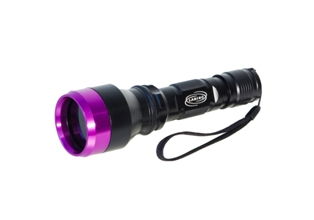

    The Labino Torch Light UVG3 is and LED flashlight designed to limit the amount of visible white light during inspections. With its white light filter, the UVG3 eradicates white light from the lamp and reduces glare.

    The UVG3 is available as a spotlight, midlight or floodlight. The spotlight emits a narrow beam measuring over 25,000μw/cm² at a distance of 38 cm (15 inches). The midlight emits a mid-beam measuring over 8,000μw/cm² at a distance of 38 cm (15 inches) with a minimal amount of visible light. The floodlight emits a wider beam measuring over 3,000μw/cm² at a distance of 38 cm (15 inches) with a minimal amount of visible light.

    Full power is achieved instantly and the battery life is up to 3 hours of continuous use.

    Included with the Labino Torch Light UVG3 is your choice of one spotlight, midlight or floodlight, a charger, a car charger, two batteries and a belt holster.

    Note: The US military purchases the UVG3 Midlight Torch (L622) and UVG3 Floodlight Torch (L632).

    Specs

    Output Characteristics

    UVG3 Spotlight UVG3 Midlight UVG3 Floodlight

    Intensity

    ≈ 25,000 μw/cm2 ≈ 8,000 μw/cm2 ≈ 3,000 μw/cm2

    Visible light

    <1 Lux / 0.09 fc <1 Lux / 0.09 fc <1 Lux / 0.09 fc

    Beam > I 200 µw/cm2

    Ø 30 mm (1.2”) Ø 100 mm (3.9”) Ø 130 mm (5.1”)
