Labino MidBeam 1.0 UV LED (LABINO-MIDBEAM-1)

    Labino MidBeam 1.0 UV LED




    DISCONTINUED

    This product has been discontinued.


    • Product Codes:
      LABINO-MIDBEAM-1
    • Tech Support Available
    • Product Weight: 3.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description


    INVENTORY REDUCTION CLEARANCE SALE
    Only 1 Unit left of MidBeam L2212 Only 1 Unit left of MidBeam L2270

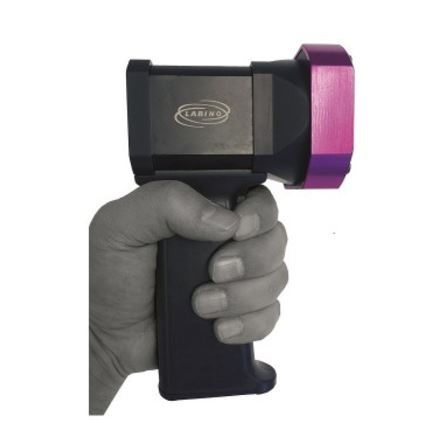

    The Labino MidBeam 1.0 is a lightweight and compact handheld lamp with a housing diameter of only 3.15 inches. The battery operated version weighs 1.23 pounds, making it easy to use on hard to reach inspection areas.

    The MidBeam comes with 4 LEDs giving a consistent beam. They also come with a white light LED for after inspections. Power is achieved instantly upon start up and the light is controlled with a simple UV/OFF/White Light switch. With its mechanical cooling system, no fan is needed for cooling the lamp. The MidBeam is 100% UV-B free and emits next to no visible light due to its visible light filter. It is compliant with ASTM UV-A intensity and wavelength specifications for FPI and MPI. IP65 approved for dust and water jetting proof.

    Features

    • Lightweight
    • Handheld - Allowing inspection of hard to reach places.
    • Instant operations with immediate full power.
    • Consistent beam of 4 LEDs and is 100% UV-B free.
    • No fan due to its mechanical cooling system.

    Specs

    Output Characteristics  MidBeam (Standard Verison)  MidBeam Aerospace
    Intensity * > 4 500 μW/cm2 < 4 500 μW/cm2
    Visible Light *  <1 Lux / 0.09 fc  <1 Lux / 0.09 fc
    Beam >1 200 μW/cm2* Ø 200 mm (7.9 ") Ø 150 MM (5.9 ")
    Ultraviolet LED  Four  Four
    White Light LED  One  Zero

    * At a distance of 38 cm (15")
