Labino BB 2.0 Series UV LED Light (LABINO-BB-2.0)

    Labino BB 2.0 Series UV LED Light
    Starting at:

    $2,027.00 1. Quote Required



    Click Here to view the product replaced by this product.
    • NEW Product
    • Product Code:
      LABINO-BB-2.0
    • Tech Support Available
    • Product Weight: 4.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description

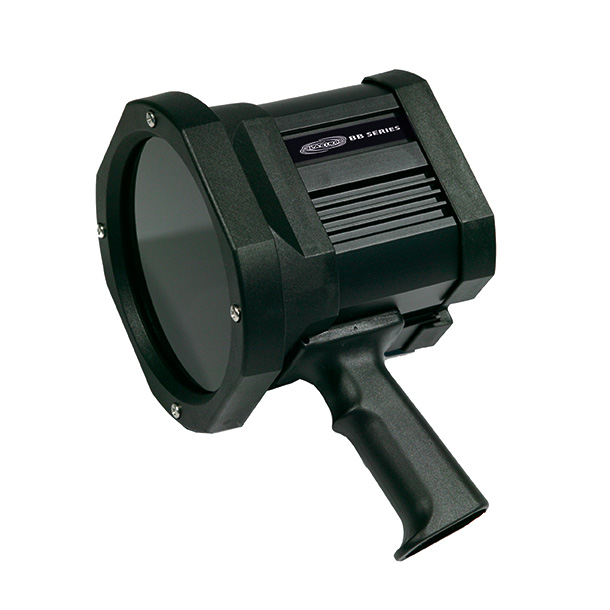

    The Labino BB 2.0 UV LED Light Series is the first penetrant resistant, Ingress Protection 68 (IP68 Waterproof) rated with the world's strongest beam (BB 2.0 Artemis). It has a new optical system with 8 UV LEDs. The beam profile has the largest, smoothest and most even of any handheld UV light on the market today. The lights come in three beam sizes and intensities varying from ≈ 4,000 μw/cm2 to ≈ 22,000 μw/cm2 and 10-11 inches / 26-28 cm.

    The Labino BB 2.0 UV lights come in either mains (plug-in) or DUO (Li-ion battery) models, are 100% free from UV-B and emit almost no white light.

    They are made of anodized aluminum and are all CE approved.

    Their lightweight, compact size makes it easy to work with and with an instant-on function you get full power immediately.

    The optional Cable Winder is compatible with all three mains versions of the BB 2.0.

    Labino BB 2.0 Ikaros (L1074/L1075)

    The Labino BB 2.0 Ikaros has an intensity of ≈ 4,000 μw/cm2 is compliant with ASTM E3022-15, Rolls Royce RRES 90061, Airbus AITM6-1001, Pratt & Whitney, The Boeing Company, ISO 3059-12 and USAF standards. The battery life for BB 2.0 Ikaros has now reached 7 hours.

    Labino BB 2.0 Helios (L1076/L1077)

    The Labino BB 2.0 Helio has an intensity of ≈ 9,000 μw/cm2 and is compliant ASTM E3022-15, Pratt & Whitney, ISO 3059-12 and USAF standards. The battery life for the BB 2.0 Helios has now reached 6 hours. Note: The US military purchases the BB Helios Midlight (L1077/L1076).

    Labino BB 2.0 Artemis (L1078/L1079)

    The Labino BB 2.0 Artemis is now the most powerful handheld UV LED light in the world with a UV intensity of more than ≈ 22,000 μw/cm2. This model is even more powerful than the MPXL 135 Series midlight and complies with ASTM E3022-15. High-intensity UV inspection lights are sought after by oil and gas and pipeline industries. The BB 2.0 Artemis has a battery life of 5 hours.

    Warranty

    All Labino BB 2.0 UV lights come with standard 2 year warranty.

    Manufactured in Sweden.

    Videos

    Specs

      SPECIFICATIONS
      BB 2.0 Artemis BB 2.0 Helios BB 2.0 Ikaros
    UV LED 8 8 8
    Visible Light* <1 Lux / 0.09 fc <1 Lux / 0.09 fc <1 Lux / 0.09 fc
    Irradiance* ≈ 22 000 μw/cm2 ≈ 9 000 μw/cm2 ≈ 4 000 μw/cm2
    Wavelength

    365 nm (peak) ±5 nm

    365 nm (peak) ±5 nm

    365 nm (peak) ±5 nm

    Beam Diameter*

    > 1000 μw/cm2: 10¼ inches / 26 cm
    Homogeneous Beam

    > 1000 μw/cm2: 11 inches / 28 cm
    Homogeneous Beam

    > 1000 μw/cm2: 10 inches / 27 cm
    Homogeneous Beam

    UV-B 100% free from UV-B 100% free from UV-B 100% free from UV-B
    Filter White Light Block Filter White Light Block Filter White Light Block Filter
    IP Rating IP68 Waterpoof IP68 Waterproof IP68 Waterproof
    Penetrant Resistant Yes Yes Yes
    Power Supply Li-Ion Battery (DUO)/Mains Li-Ion Battery (DUO)/Mains Li-Ion Battery (DUO/Mains
    Start-up Time Instant-On w/Full Power Instant-On w/Full Power Instant-On w/Full Power
    Housing Anodized Aluminium, Plastics PA6-30 Anodized Aluminium, Plastics PA6-30 Anodized Aluminium, Plastics PA6-30
    Housing Diameter 140 mm (5.67 inches) 140 mm (5.67 inches) 140 mm (5.67 inches)
    Mains Cord Length 2 meters 2 meters 2 meters
    Battery Running Time 5 hours 6 hours 7 hours
    Estimated LED Life Time 30,000 hours 30,000 hours 30,000 hours
    Standards  ASTM E3022-2015 ASTM E3022-2015

    ASTM E3022-2015
    Rolls-Royce RRES 90061
    Airbus AITM6-1001

    Weight Mains 1.2 kg (2.6 lbs) 1.2 kg (2.6 lbs)

    1.2 kg (2.6 lbs)

    Weight DUO (Battery) 1.7 kg (3.7 lbs) 1.7 kg (3.7 lbs)

    1.7 kg (3.7 lbs)

    CE Approved Yes Yes

    Yes

    Voltage 100-240 VAC 100-240 VAC

    100-240 VAC

    Warranty 2 years 2 years 2 years

     *At a distance of 38 cm (15 inches).

    **The standard EN 3059 5.2 and ISO 9934-3 recommend to use a UV-block filter on the sensor of the Visible light meter eliminating all UV (below 380 nm) to get the accurate amount of visible light.

    Additional Info

    Package Includes
