Labino TrAc Finder Kit with TrAc Light (K206)

Manufactured in Sweden, the Labino TrAc Finder Kit possesses the most powerful ALS lamp with the widest beam on the market. The kit gives crime fighters the tools necessary for investigations and also has NDT applications.

The Labino TrAc Finder Kit includes 1 MPXL UV Lamp TrAc Light, 4 filters (UV/general/blue/green), 4 goggles (UV/yellow/orange/red) and a carrying case. The TrAc light has a battery life of 1.3 hours, a weight of 2.32 kg (5.1 lbs) and is available in a spotlight beam or a midlight beam. The spotlight beam has an intensity of 45,000 μW/cm^2 and the midlight beam has an intensity of 8,000 μW/cm^2.

It is big – It is clumsy – It is ugly! But it fights the crime better than anyone!

The TrAc Finder™ is the most powerful ALS lamp with the widest light beam available on the market. The TrAc Finder meets the needs of criminal investigators who need an intense ALS with a wide light beam.

Included in the TrAc Finder TrAc Light kit:

• 1 MPXL UV Lamp TrAc Light:
  • Battery running time: 1.3 hrs +/-5 %
  • Weight: 2.32 kg (5.1 Ibs)
  • The lamp is available in 2 beams:
    Spotlight  ≈ 45 000 μW/cm2 at 38 cm
    Midlight  ≈ 8 000 μW/cm2 at 38 cm
• 4 Filters:  UV /General / Blue / Green
• 4 Goggles: UV / Yellow / Orange / Red

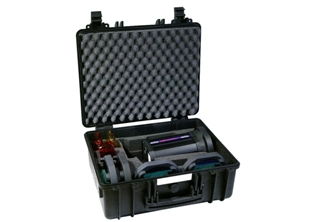

• 1 Rugged Professional Carrying Case
• Country of origin: Sweden

• TrAc Light - Data Sheet
• Kit - Data Sheet
• Filters - Data Sheet
• Goggles - Data Sheet

TrAc Light Specifications

Midlight

• Distribution angle (beam) approx. 20°
• Irradiance
  8 000 μW/cm2=at 38 cm (15”)

Spotlight

• Distribution angle (beam) approx. 3.5°
• Irradiance
  45 000 μW/cm2=at 38 cm (15”)

Voltage

• Charger: 100-240 VAC
• Internal Battery: 12/24 VDC
• Input Power: 43 W
• Output Power: 35 W

Battery

• 14.8 V Li-ion accumulator
• Running time: 1.3 hr +/- 5%
• Charging time: approx. 3 hrs
• Charge from mains via wall socket charger
• Cannot be operated while charging

Weight: 2.32 kilos (5.1 lbs)

Mechanical Stability (bulb): IEC810

Service life (bulb): approx. 2 000 hrs

Wavelength: UV-A, peak at 365 nm

Start-up time: full power after 5-15 sec

Material in housing: anodized aluminium, plastics PA6-30

The housing is via pre milled slots prepared for mounting devices

Equipped with a current regulator to keep the intensity stable when the battery fades

S, CE, ETL/cETL approved
