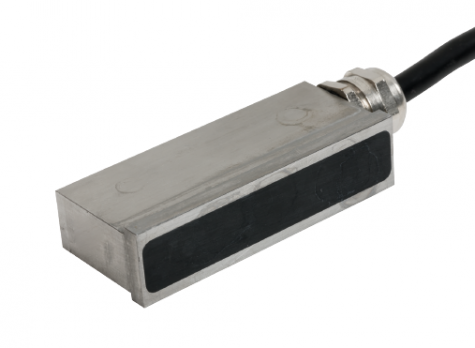

Waygate Krautkramer Immersion Probes (IMMERSION-PAUT)

    Waygate Krautkramer Immersion Probes


    Quote Required Quote Required



    This product has been discontinued.


    • Product Codes:
      115-100-035
    • Tech Support Available
    • Product Weight: 0.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description


    Immersion probes stand out as the optimal solution for inspecting components with irregular shapes. Their superiority lies in ensuring consistent coupling, leading to dependable and replicable outcomes, making them a preferred option for mechanized or automated testing with water. For examining sizable parts, various techniques such as probe holders, bubblers, or water jets can be employed, allowing for focused examination and enhanced testing precision


    Applications:

    • Composite plate inspection
    • Immersion scanning area coverage
    • Plates, billets and bars
    • Disks, axles and shafts
    • Large area scanning

    Features

    • Acoustically matched for best efficiency in water
    • Fixture mountable
    • Fast inspection of large areas
    • Waterproof design
    • Near wall design allows close access to edge of case (~1 mm)
    • 6 meter cable
