Labino GX Orion Waterproof Modular Overhead UV Inspection Light (GX-ORION)

    Labino GX Orion Waterproof Modular Overhead UV Inspection Light
    Starting at:

    $2,300.00 1. Quote Required

    IN STOCK
    Click Here to view the product replaced by this product.

    This product has been discontinued.

    ADD TO CART

    Share this product
    • Product Codes:
      L3100
    • Tech Support Available
    • Product Weight: 10.00
    HAVE A QUESTION?
      Call:   1-847-577-3980
      Send an Email
       Hours:   8:00 am to 4:30 pm CST

    Description

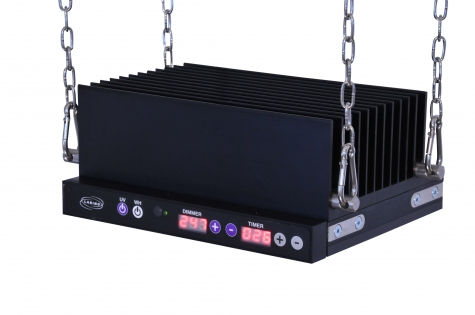

    Labino's LED overhead inspection lamp, the GX Orion, is the only overhead UV system on the market that is certified with an ingress protection marking of IP68 Waterproof, making it an extremely useful tool for inspection areas with excessive liquids. The light is a modular system that can be used to cover large areas. There are three different models to choose from:
    • GX Orion REMOTE Remote controlled with multiple UV intensities and white light, ≈ 1 500 – 7 000 μw/cm2
    • GX Orion UV & WH UV and visible light on/off buttons only, ≈ 7 000 μw/cm2
    • GX Orion UV UV only on/off button, ≈ 4 500 μw/cm2
    The GX Series family of products meet the ASTM E3022-15 and ISO 3059-12 standards as well as requirements set by the PRIMES. The optics used in the GX Series meet the Rolls-Royce RRES 90061 specification. The beam profile of the UV light is remarkably homogenous without any footprints showing from the LEDs, shades, dark spots, or other disturbing defects.

    All GX Orion models have a built-in PLC interface designed to connect to your PLC system. You can choose a “mother” or a “slave” GX Orion unit, with or without a remote panel, with or without on/off power switches, and still be able to monitor the unit completely through your computer via the PLC interface.

    GX Orion series UV lights come with a  4-Year Warranty on parts. The warranty covers parts from standard use.

    Features

    WATERPROOF: GX Orion is the only overhead UV system on the market that is certified with an ingress protection marking of IP68 Waterproof, making it an highly useful tool for inspection areas with excessive liquids.

    PLC INTERFACE: All GX Orion units come with a PLC interface that can be used to monitor the UV light from a computerized panel.

    MODULAR DESIGN: Allows you to design the desired covered area by mounting multiple units together.

    THREE DIFFERENT OPTIONS: Choose from remote controlled with multiple UV intensities, UV on/off button only, and UV and visible light on/off buttons only.

    REMOTE CONTROL OPTION
    A remote control allows you to switch on/off the UV and White Light, change the intensity and set up the timer from a distance.

    OPERATE VIA A FOOT PEDAL OR A POWER BUTTON
    Can be used as an on/off switch for the UV light to activate the last used intensity and the last recorded timer setting.

    WARRANTY
    3 year warranty.

    Videos

    Specs

    Mother Units

    Output Characteristics

    Standards/Requirements

    GX Orion REMOTE

    Intensity    ≈ 1,500 – 7,000 μw/cm2

    Visible Light   <1 Lux / 0.09 fc

    Beam Size*   >1,200 µw/cm2 - 330 mm x 230 mm
    *At a distance of 38 cm (15")

    ASTM E3022-15
    ISO 3059-12

    GX Orion UV & WH

    Intensity   ≈ 7,000 μw/cm2

    Visible Light   <1 Lux / 0.09 fc

    Beam Size*   >1,200 µw/cm2 - 330 mm x 230 mm
    *At a distance of 38 cm (15")

    ASTM E3022-15
    Pratt & Whitney
    ISO 3059-12

    GX Orion UV

    Intensity   ≈ 4,500 μw/cm2

    Visible Light   <1 Lux / 0.09 fc

    Beam Size*   >1,200 µw/cm2 - 260 mm x 180 mm
    *At a distance of 38 cm (15")

    ASTM E3022-15
    ISO 3059-12
    PRIMES
    Rolls-Royce RRES 90061
    Airbus AITM6-1001
    Pratt & Whitney
    The Boeing Co.
    ISO 3059-12
    USAF

    Slave Units

    Output Characteristics

    Standards/Requirements

    GX Orion UV & WH

    (Pairs with Remote
    or UV WH Mother)

    Intensity   ≈ 1,500 - 7,000 μw/cm2

    Visible Light   <1 Lux / 0.09 fc

    Beam Size*   >1,200 µw/cm2 - 330 mm x 230 mm
    *At a distance of 38 cm (15")

    ASTM E3022-15
    Pratt & Whitney
    ISO 3059-12

    GX Orion UV

    Intensity   ≈ 4,500 μw/cm2

    Visible Light   <1 Lux / 0.09 fc

    Beam Size*   >1,200 µw/cm2 - 260 mm x 180 mm
    *At a distance of 38 cm (15")

    ASTM E3022-15
    ISO 3059-12
    PRIMES
    Rolls-Royce RRES 90061
    Airbus AITM6-1001
    Pratt & Whitney
    The Boeing Co.
    ISO 3059-12
    USAF

    TECHNICAL DATA



    GX Orion

    UV LED:

    10

    Wavelength:

    365 nm (peak) +/- 5 nm

    Estimated LED life time:

    30,000 hours

    UV-B:

    100% free from UV-B

    Filter:

    White light block filter

    Power supply:

    Mains

    Weight:

    2.6 kg (5.8 lbs)
