Circle Systems CircleSafe 778A Fluorescent, Water Media Aerosol Case 12-16oz Cans" (FG-3590)

    Circle Systems CircleSafe 778A Fluorescent, Water Media Aerosol Case 12-16oz Cans"


    Quote Required Quote Required

    Available Summer 2022

    This product has been discontinued.


    • Product Code.:
      FG-3590
    • Tech Support Available
    • Product Weight: 15.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description

    Circle Systems MI-GLOW 778S-RTU (FG-3572) Fluorescent, Water Media is the replacement for FG-3590.
    To Buy, Click Here.

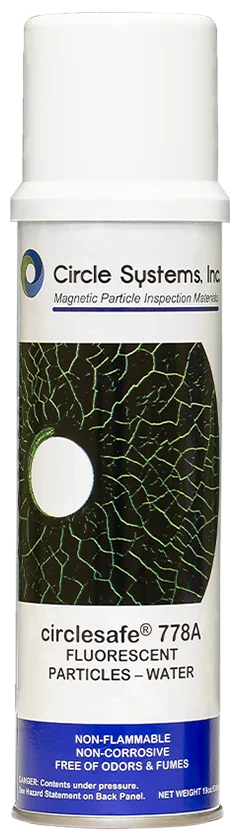

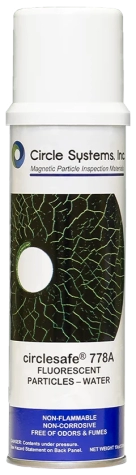

    CircleSafe® 778A is an aerosol spray can of Mi-Glow® 800 fluorescent yellow-green particles and liquid Wetting Agent 771, formulated in water media. It is designed to be used with black light inspection to detect very fine discontinuities found in finished products and critical, highly stressed component parts. Its ultra-bright, ultra-sensitive particles allow for excellent detection. This aerosol is packaged in a carbon dioxide propellant for odor-free, fume-free, non-combustible inspection.

    Physical Characteristics
    Forest green solution with a slight detergent odor, contained in an aerosol package.

    Particle Certification
    Particles conform to or exceed all relevant specifications including but not limited to MIL-STD-1949, MIL-STD-271(SH), NAVSEA 2501-1500-1, ASTM E 709 and ASTM B & PV Code - Section V. AMS 3044 is covered under MIL-STD-1949.


    Due to shipping regulations, aerosols must ship via ground delivery.


    Specs

    Particle Color

    Particle Size

    AMS Standard

    SAE Sensitivity*

    Temperature Range

    Fluorescent Yellow/Green 5 µm 3044 8 120°F Maximum

    ***Representative of the number of lines shown on an AISI 01 Ketos tool steel ring as defined in SAE AS5282.
