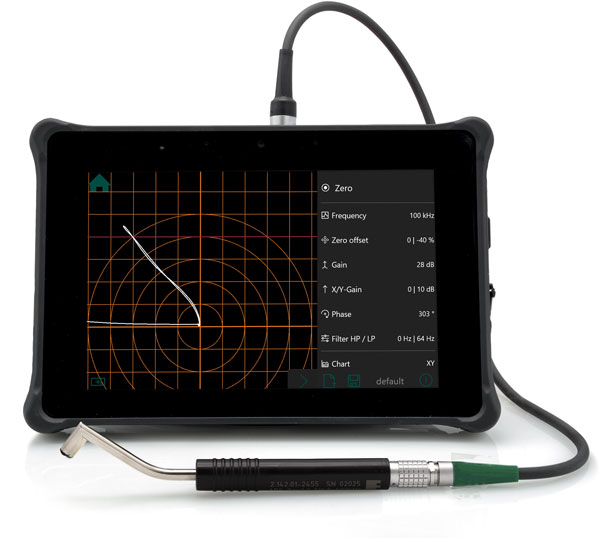

Foerster DEFECTOSCOP TCM 2.142 -Mobile universal eddy current tester (DEFECTOSCOP-TCM-2.142)

    Foerster DEFECTOSCOP TCM 2.142 -Mobile universal eddy current tester
    Starting at:

    $58.00

    This product has been discontinued.

    ADD TO CART

    Share this product
    • NEW Product
    • Product Codes:
    • Tech Support Available
    • Product Weight: 0.00
    HAVE A QUESTION?
      Call:   1-847-577-3980
      Send an Email
       Hours:   8:00 am to 4:30 pm CST

    Description


    Introducing the Foerster DEFECTOSCOP TCM 2.142 - Mobile Universal Eddy Current Tester, the pinnacle of non-destructive testing technology. This cutting-edge device is your all-in-one solution, providing a single platform for a wide range of eddy current testing tasks. From conventional testing in the impedance plane view to advanced multi-frequency inspections, this versatile tester is designed to meet all your needs.

    The DEFECTOSCOP module harnesses the power of a universal eddy current tester, presenting measurement data in the impedance plane. With an intuitive interface, users in expert mode can effortlessly customize parameters, creating a personalized test program. Save time by defining favorites for quick startup, and seamlessly switch between expert and operator modes for efficient editing and system settings.

    Experience the flexibility of multi-frequency inspections with up to 8 frequencies running in parallel. This allows for simultaneous testing at different material depths, streamlining your testing process. Customize the color representation of frequencies according to your preferences, ensuring a tailored and visually intuitive experience.

    Capture the intricacies of spinning components or handheld rotating probes with high-resolution C-scans, enabling easy evaluation and comprehensive documentation of the test area. Alternatively, record and export raw eddy current data for in-depth analysis on your workstation computer.

    Trust in the Foerster DEFECTOSCOP TCM 2.142 to elevate your eddy current testing capabilities, providing precision, flexibility, and efficiency in every inspection.

    Features

    Eddy current testing with rotating, HF, LF applications, etc. to solve a wide variety of test tasks, either using your own sensors or sensors adapted by FOERSTER

    C-scan: data from a hand-held rotating probe can be displayed in a high-resolution C-scan

    Multi-frequency inspection with up to 8 frequencies to check at different material depths for discontinuities in a single pass, or to reduce interference via frequency mixing

    Post-processing of ‘frozen’ eddy current data: freeze an eddy current signal and then edit parameters such as gain, phase, high-pass and low-pass filters

    Flexible probe selection: connect a wide variety of sensors, such as parametric, transformer or bridge probes

    Videos

    Specs

    • Frequency Range: 4 Hz – 20 MHz, adjustable in 1 Hz steps.
    • Multi-Frequency: Up to 8 frequencies in parallel, with the ability to mix two frequencies.
    • Max Output Current: 400 mA (peak).
    • Charts: x/y, t, x/y + t, C-scan.
    • Thresholds: Lines, circle, box, sector.
    • Freeze Mode: Freeze your signal and adjust parameters like gain and phase.

    Additional Info

    Brochure

    Package Includes
