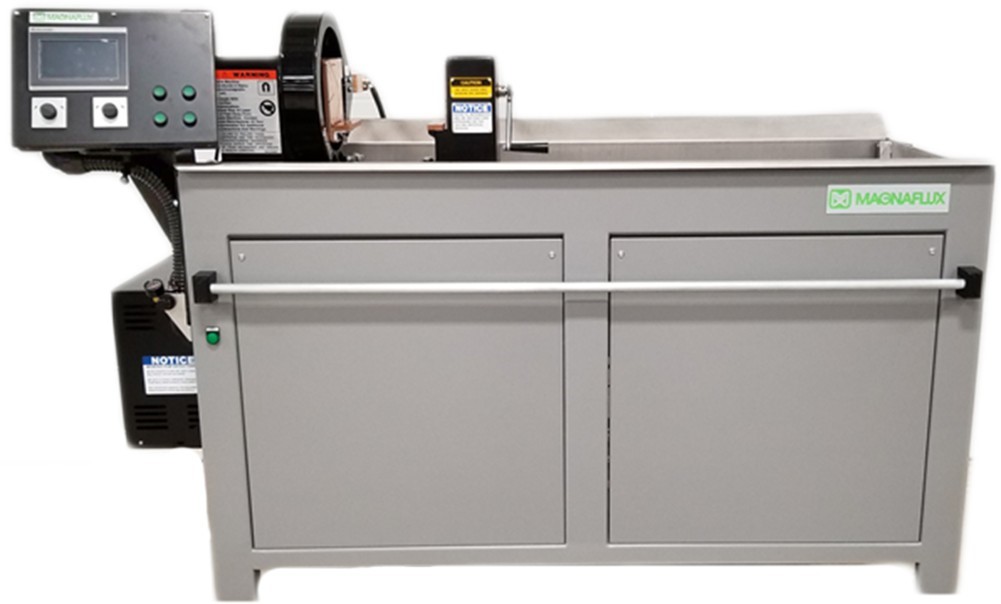

Magnaflux Magnetic Particle Wet Bench AC and DC Magnetization (ADH-2045)

    Magnaflux Magnetic Particle Wet Bench AC and DC Magnetization


    Quote Required Quote Required



    This product has been discontinued.


    Share this product
    • NEW Product
    • Product Code.:
      ADH-2045
    • Tech Support Available
    • Product Weight: 0.00
    HAVE A QUESTION?
      Call:   1-847-577-3980
      Send an Email
       Hours:   8:00 am to 4:30 pm CST

    Description


    ADH-2045 magnetic benches provide 4,000 amps of Alternating Current and 5,000 amps of Half Wave Direct Current magnetization for finding surface and sub-surface defects during wet method magnetic particle inspection. The two outputs are independently adjustable to set each magnetic field, circular or longitudinal.

    BENEFITS:

    Faster part processing

    • Reduce processing time with operatorenabled automatic Double-Mag Shot
    • Generate 300+ shots per hour at maximum unit output

    Real-world dependability for minimal downtime

    • Allen-Bradley PLC provides reliable controls and off-the-shelf replacements
    • Advanced agitator system helps prevent blockages and clumping by keeping magnetic particles well suspended
    • Rely on our industry leading warranty with best in-class service delivered by a global network of trained Magnaflux authorized service centers

    Easy to use and maintain

    • Make quick operational adjustments using the simple, user-friendly operator interface with touch-screen controls
    • External pump system provides fast access for easy cleaning and service
    • Assure testing accuracy and repeatability with direct amperage control and fluctuation mitigation

    Features

    • 5% duty cycle of 0.5 seconds on, 10 seconds off at maximum output
    • Allen-Bradley PLC
    • Control Circuit feedback loop for amperage regulation and repeatability
    • Simple touch-screen operator interface
    • External pump system for particle bath agitation, circulation and application
    • Integrated decaying-AC demagnetization with 1-touch control
    • Low-voltage output minimizes electrical exposure for operator safety
    • Adjustable mag shot time from 0.5 to 2 seconds
    • Automatic Double-Mag Shot with 1-touch control
    • Mag-shot-activating front push bar with 1-touch control to enable/disable this feature
    • Current assurance indicator light confirms magnetizing current delivery
    • Solid state circuitry increases lifetime and performance of machinery

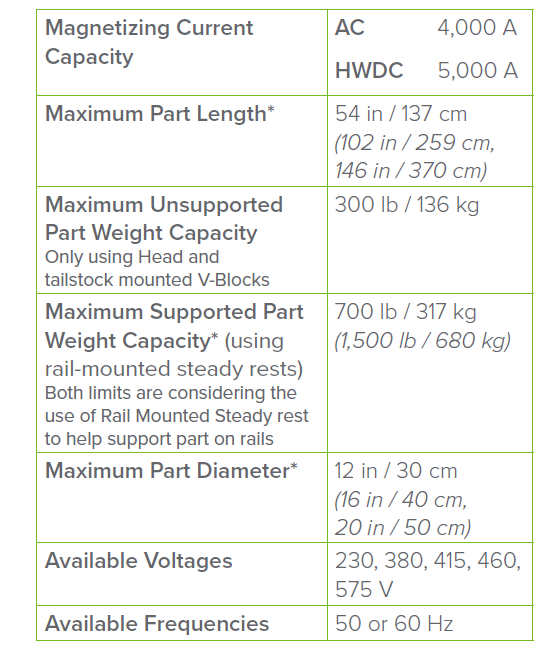

    Specs

    Additional Info

    Brochure
