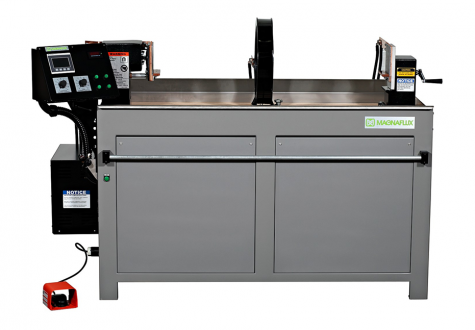

Magnaflux Magnetic Particle Wet Bench AC and DC Magnetization

The AD-2045 magnetic benches provide 4,000 amps of Alternating Current and 5,000 amps of 1-phase Full Wave Direct Current magnetization for finding surface and sub-surface defects during wet method magnetic particle inspection. The two outputs are independently adjustable to set each magnetic field, circular or longitudinal.

Faster part processing

• Reduce processing time with operator-enabled automatic Double-Mag Shot

• Generate 300+ shots per hour at maximum unit output

Real-world dependability for minimal downtime

• Allen-Bradley PLC provides reliable controls and off-the-shelf replacements

• Advanced agitator system helps prevent blockages and clumping by keeping magnetic particles well suspended

• Rely on our industry leading warranty with best in-class service delivered by a global network of trained Magnaflux authorized service centers

Easy to use and maintain

• Make quick operational adjustments using the simple, user-friendly operator interface with touch-screen controls

• External pump system provides fast access for easy cleaning and service

• Assure testing accuracy and repeatability with direct amperage control and fluctuation mitigation

Product Data Sheet

UL/CSA Product Data Sheet

• 5% duty cycle of 0.5 seconds on, 10 seconds off at maximum output
• Allen-Bradley PLC
• Control Circuit feedback loop for amperage regulation and repeatability
• Simple touch-screen operator interface
• External pump system for particle bath agitation, circulation and application
• Integrated decaying-AC demagnetization with 1-touch control
• Low-voltage output minimizes electrical exposure for operator safety
• Adjustable mag shot time from 0.5 to 2 seconds
• Automatic Double-Mag Shot with 1-touch control
• Mag-shot-activating front push bar with 1-touch control to enable/disable this feature
• Current assurance indicator light confirms magnetizing current delivery
• Solid state circuitry increases lifetime and performance of machinery
