Ritec RiMaxio from ID 50-150 mm (88083)

    Ritec RiMaxio from ID 50-150 mm


    Quote Required Quote Required



    This product has been discontinued.

    • Product Code:
      88083
    • Tech Support Available
    • Product Weight: 80.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description

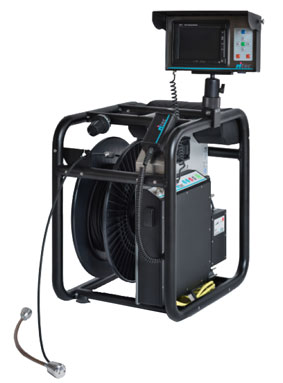

    The Ritec RiMaxio Push Pull Camera is a high-pressure-jet camera for cleaning and inspections from ID 50-150 mm (2"-6"), 45° bendable from ID 50 (2").

    System
      - 20 m (60 ft.) high pressure hose DN 8 (ID 0.3“)
      - 40 m (130 ft.) camera cable
     - Front camera with steerable high pressure nozzle
     - Forward feed nozzle DN 8 (ID 0.3”) with changing use
    Handling
       - Simply carrying via different grip possibilities (lateral, in front of the breast, etc.)
       - Lifting in pairs (onto a scaffold for example)
       - Passing to another person (into a trench for example)
    Stability
       - All-round protection by circular cage
       - Composition of sturdy stainless steel, high-quality synthetic material and lightweight aluminum
         for a perfect relation between stability and weight
       - Industry-mounted reel basket
       - Stable stand by large footprint
       - Splash water protected
    Display
       - Display (optional) turnable in all directions
    Brake
       - High grade wheel disc brake
       - Rapid choice twist grip (fine adjustable via twist-part on the grip)
    Meter Counter
       - High-precision meter counter with displaying in the monitor set of meters, on/off with buttons
         control
       - Minimum of movable elements
    Service
       - Service pleasant by numerous plug connections and modular structure
       - Easy packaging and transporting because of cubical form
    Other
       - Bag for small parts
