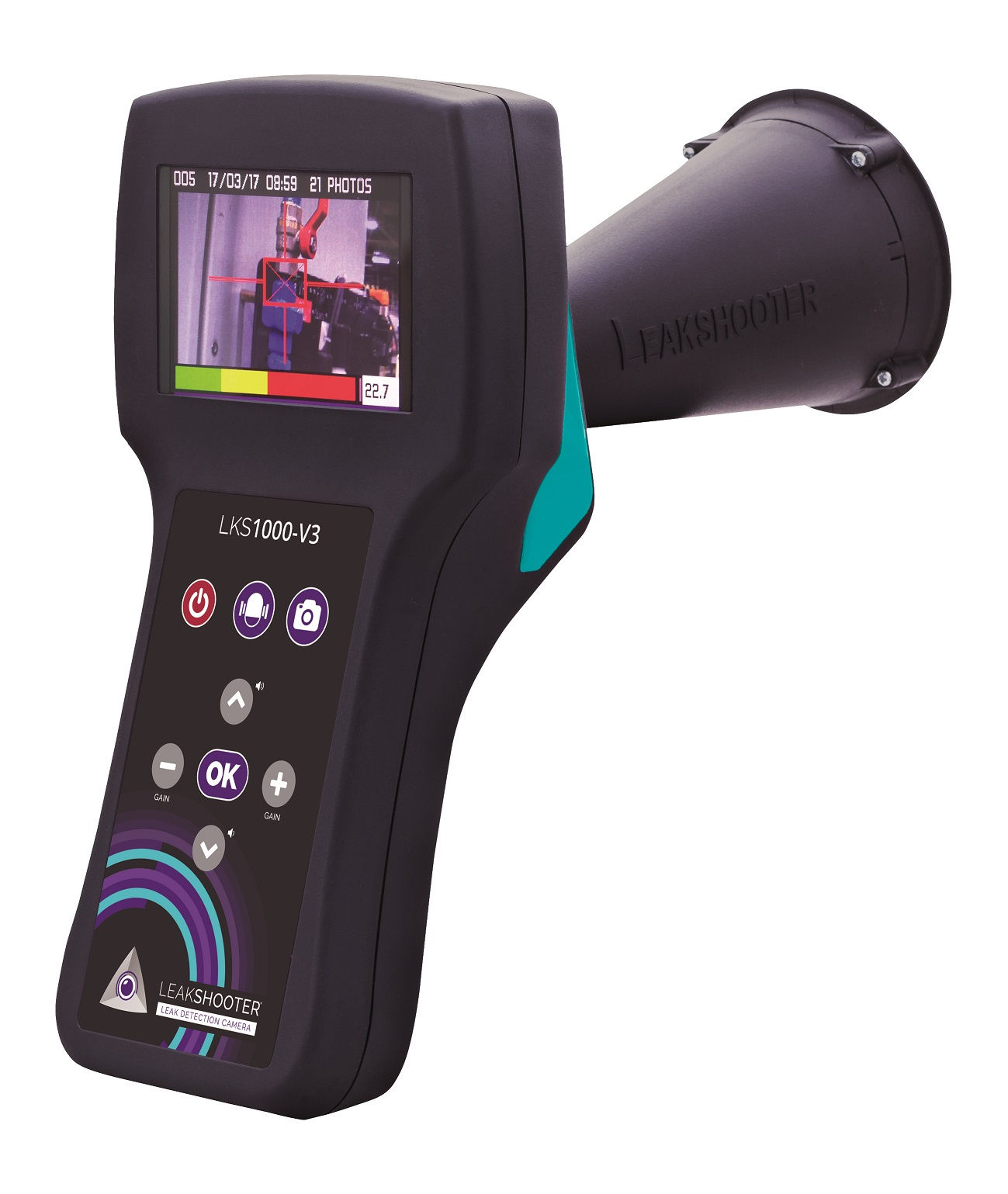

    The Synergys LEAKSHOOTER® LKS1000-V3 is a unique, ultrasonic leak detection camera. Compressed air and steam leaks are detected using the camera and a dynamic on-screen target to precisely find leak locations (patented).

    The LEAKSHOOTER® LKS1000-V3 features a new concept of Steam Trap diagnostic: The STRAPSHOOTER®. The STRAPSHOOTER® program is an easy-to-use firmware which can automatically diagnose the condition of your steam trap. It uses an incredibly sensitive camera, capable of finding compressed air leaks (no bigger than the size of syringe needle) at a distance of 20m. When the LEAKSHOOTER® LKS1000-V3 comes near a leak, a dynamic yellow target appears on the large color screen. The target turns red and becomes smaller as the camera approaches the source of the leak. When the camera is pointing at the leak, a cross appears in the center of the target, and you can photograph and save the precise location of the leak.

    Small Leak No Leak Big Leak















    When taking pictures of leaks, each photo is numbered, dated and time stamped and shows the dB RMS level of each leak. Photos can be easily uploaded directly onto a PC via a supplied USB cable and attached to inspection reports.

    Real-Time Measurement

    Temperatures can now be recorded in real-time and you can save the screen and graph for T°IN and T°OUT. During the real-time viewing on screen, you can see RMS, MIN, MAX values.

    You can also use plug-in professional grade headphones (supplied with the unit) into the LEAKSHOOTER® LKS1000-V3 and use the traditional method of leak detection by listening for the hissing sound of the leak.

    The LEAKSHOOTER® LKS1000-V3 uses:

    • Ultrasonic contact probe to analyze the Steam Trap
    • Embedded infrared pyrometer to measure the pipe T° IN & T° OUT
    • STRAPSHOOTER® program to see, hear, analyze and report the Steam Trap condition state
    • Embedded camera to take a picture of the Steam Trap for reporting

    Systematically checking for and eliminating leaks and defective traps will bring considerable energy savings.

    Leak tests can prevent more severe and costly problems, so it is important to regularly monitor the air, vacuum or gas installations that you use in your operations. Many industries use compressed air as a propellant for many types of machines including automotive, hospitals, laboratories, shipping and heavy engineering plants.

    The Leakshooter LKS1000-V3 Includes:

    • Leak Detection Camera LKS1000-V3
    • Metal Case
    • Headphones
    • Battery Charger
    • USB Cable
    • User Manual

    Here are actual measurements taken by the Leakshooter V3 for the following types of steam traps:

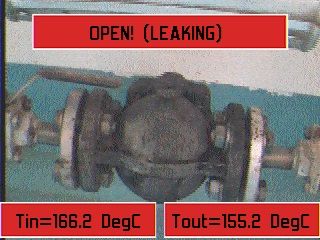

    Mechanical Ball Float - with leak identified:

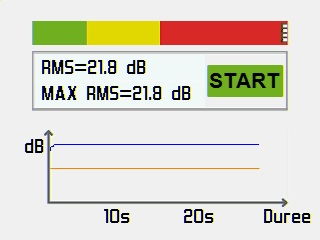

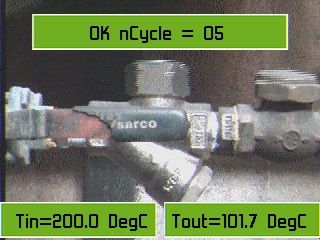

    Thermodynamic - Cycling OK:

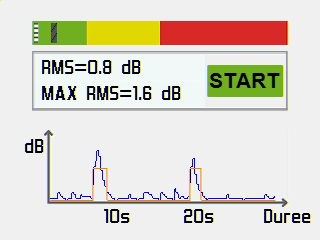

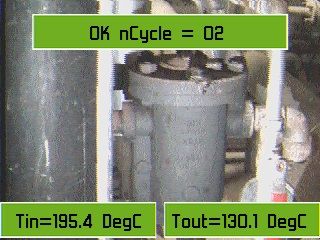

    Big Inverted Bucket – Cycling OK. (With long cycle, around 90s, under high pressure and high temperature.)



    Videos

    Specs

    Sensitivity

    Detects a leak of 0.1 mm at 3 bars at 20 m

    Camera

    Colour 640 x 480 pixels

    Display

    LCD colour 3,5“ 320 x 240 pixels

    Pictures

    BMP, number, date and time

    Dynamic Target

    Red square with cross on strong leak

    Yellow square with cross on light leak

    Measurements

    dB RMS and MAX RMS

    Program

    Airborne leak detection & steam trap analyzer

    Memory

    Up to 1000 pictures, can be uploaded to PC

    Communication

    USB cable supplied

    US sensor

    Open type - Bandwidth ± 2 kHz to - 6 dB

    Central frequency 40 kHz ± 1 kHz

    Adjustable frequency mixer from 34 to 46 kHz

    Adjustable gain from 50 to 110 dB

    T° sensor

    Infrared embedded pyrometer (0 - 250°C)

    Headphones

    Adjustable volume from 0 to 10

    Case

    ABS high impact IP67

    Power supply

    Lithium-ion rechargeable battery

    Autonomy

    ± 6 hours

    Temperature range

    -10°C to + 50°C

    Dimensions

    H : 230 mm - W : 100 mm - D : 70 mm

    Weight

    580 gr for the LKS1000-V3
    6 kg including ABS case

    Standards CE

    CEM 2004/108/CE : EN61000-6-4 & EN61000-6-2

    Accessories

    LKSFLEX Flexible 400mm US sensor

    LKSFLEX1500 + Flexible 1500 mm US Sensor

    LKSPROBE Mechanical US sensor

    LKSDOME Ultrasonic emitter

    LKSCOVER Holster
