Berg UV Torch (uv-torch)

    Berg UV Torch




    DISCONTINUED

    This product has been discontinued.


    Share this product
    • Product Codes:
      uv-torch
    • Original Code:
      uv-torch
    • Tech Support Available
    • Product Weight: 3.00
    HAVE A QUESTION?
      Call:   1-847-577-3980
      Send an Email
       Hours:   8:00 am to 4:30 pm CST

    Description

    The Blacklight UV Torch offers a light compact, long life, high durability solution to UV inspection techniques. The high powered LED bulb gives intensity greater than 6000ìw/cm² at 400mm. The battery life is approximately 8 hours enabling longer inspection periods.

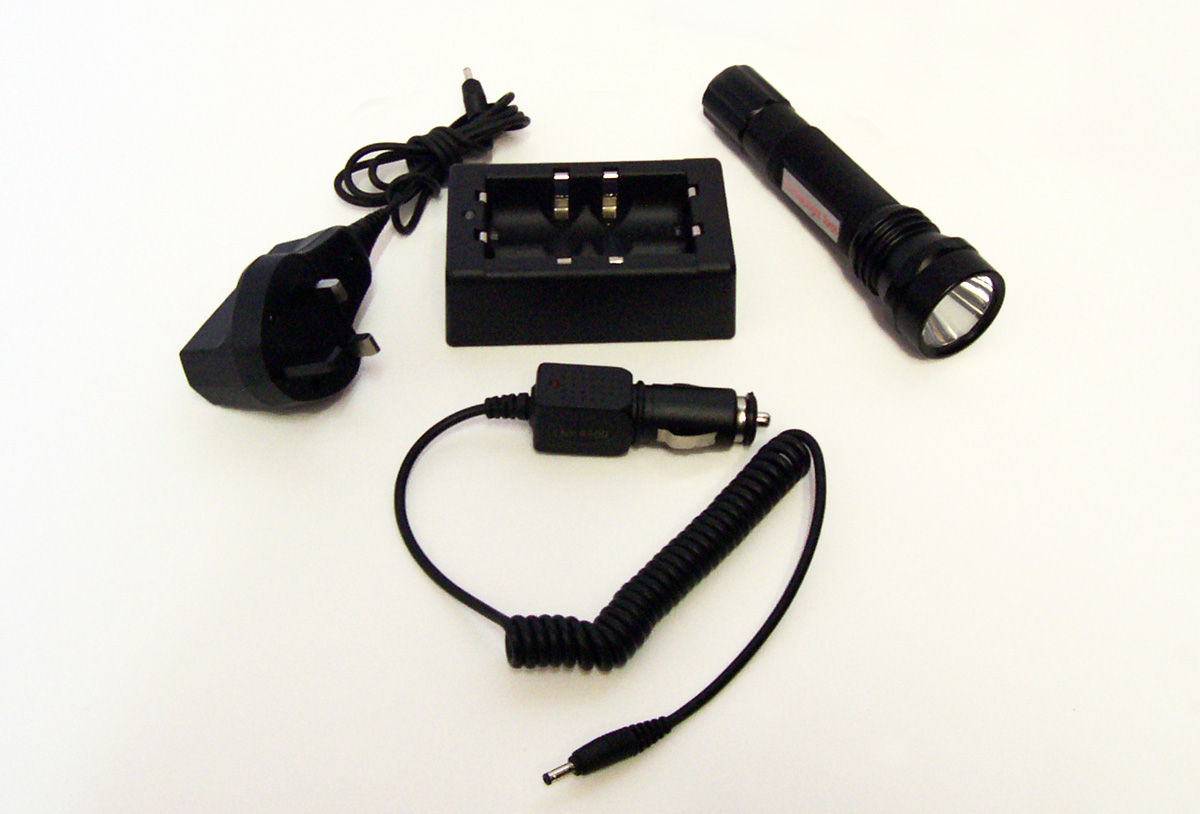

     Includes:

    • 1 Blacklight UV torch
    • 1 Battery charger
    • 1 115 volt charging lead
    • 1 Car charging Lead
    • 2 Rechargeable batteries
    • Option - carrying pouch for belt
    • 1 Year Warranty from Date of Purchase

     Applications:

    • Nondestructive Testing NDT
    • Quality Control
    • Fluorescent Leak Detection
    • UV-A Curing
    • Photo activation and UV-A Dosing
    • Rare Documents/Stamp/Artwork Examination
    • Scorpion Hunting
    • Law Enforcement/Forensics/CSI

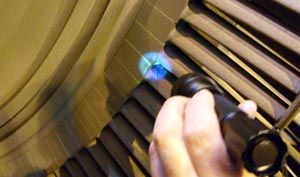

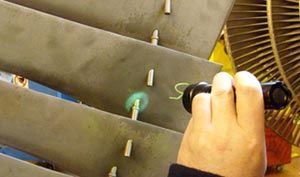

    NDT INSPECTION USE:



    Meets Blacklight/UV Light Requirements for ASTM E1444 Standard Practice for Magnetic Particle Testing



     LAW ENFORCEMENT/FORENSIC USE:









    Features

    • Instant On
    • Portable & Rugged
    • 8 Hour Battery Life
    • 60,000 hour LED Life
    • Meets MIL and ASTM Standards

    Specs

    • Single 365 nm LED (Peak Wavelength) LED life 60,000 hours on constant
    • Constructed - CNC machined aerospace-grade aluminium, hard anodized finish extreme corrosion and wear-resistance 0-ring sealed
    • Crystal lens
    • Length and weight (with batteries) 14 cm 5.5 inches / 5.1 ounces
    •  Recessed tail cap switching mechanism is designed to prevent unintentional activation of the torch
    • Weatherproof and lightweight
    • The initial charging of the battery takes 12 hrs after this recharging takes approximately 2 hrs
    • Voltage 3.7
    • On /off switch momentary (instant start up)
    • UV source 1 UV LED 5 WATT
    • Wavelength true 365 nm
    • Intensity >6.000 �w/cm� at 400 mm
    • Length 14cm 5.5 inches
    • Weight 148 gm including batteries
    • Battery life aprox 8 hrs
    • Re-charge 2 hrs
