Wilson UH753/UH3003 Universal Hardness Testers

SKU: uh750-3003
$0.00

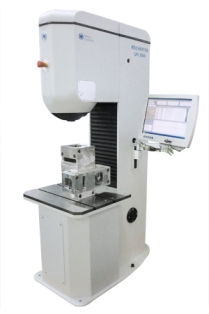

Wilson UH753/UH3003 Universal Hardness Testers

Thumbnail Filmstrip of Wilson UH753/UH3003 Universal Hardness Testers Images

    Product details

    Tech support available

    Product code
    uh750-3003
    Original Code
    uh750-3003
    Product weight
    0.00
    Purchase Wilson UH753/UH3003 Universal Hardness Testers

    Wilson UH753/UH3003 Universal Hardness Testers

    SKU: uh750-3003

    $0.00
    This product has been discontinued.

    Description


    The UH753 / UH3003 series complete the new generation of hardness testers. It is available in two versions, with maximum test forces to 750kg and 3000kg respectively. Due to its sturdy design, it is a reliable machine and suitable for rough workshop conditions. The innovative hardness tester features extremely fast testing cycles and a newly developed changer magazine to hold several indenters and lens. The operator can test to a variety of test methods without the need for manual indenter/objective changes.

    The UH 750 / 3000 - series is available in 4 different versions. Please see below table for an overview of the key features.

      UH751 UH753 UH3001 UH3003
    Hardness scales Brinell, Vickers & Rockwell
    Load application Loadcell closed-loop control system
    Load Range
         		 3 kgf - 750 kgf
    29.42 N - 7355 N    		 20 kgf - 3000 kgf
    196.1 N - 29420 N
    Spindel Manual Motorised
    test head     		 Manual Motorised
    test head
    Optical measurement Manual or automatic evaluation with Zoom optic
    Display Touchpanel (IP65)



    Additional Info
    Wilson UH753/UH3003 Universal Hardness Testers
    Related Accessories
    Package Includes
    Accessories

    Product details

    Tech support available

    Product code
    uh750-3003
    Original Code
    uh750-3003
    Product weight
    0.00

    Product Heading content

    Technical Specifications

      UH 753 UH 3003
    Scale overview
         		 HV 3 - HB 5/750 HV 20 - HB 10/3000
    Load range
         		 3 kgf - 750 kgf (29,42 N - 7355 N) 20 kgf - 3000 kgf (196,1 N - 29420 N)
    Load application
         		 Loadcell closed-loop control system
    Load Duration Adjustable between 0.1 - 255 seconds

    Optics Custom design optics with 5 Megapixel
    Digitalcamera, Zoom and Autofocus
    LED - Illumination
    Turret
         		 Vertical 4 position motorised turret

    Objective
    (optional)    		 2x for diagonal range 0,48 – 6,0mm
    5x for diagonal range 0,19 – 3,0mm
    10x for diagonal range 0,10 – 1,5mm
    Indenters
    (Optional)    		 Brinell 2,5mm, 5,0mm and 10,0mm carbide ball
    Vickers diamond
    Rockwell diamond & 1/16” carbide ball

    Optical measurement
         		 Manual or automatic indent evaluation

    Brinell scales
         		 HB 2,5/6,25 - 2,5/15,625 - 2,5/31,25 - 2,5/62.5 - 2,5/187.5
    HB 5/25 – 5/62,5 – 5/125 – 5/250 – 5/750
    HB 10/100 – 10/250 - 10/500 – 10/1000 – 10/3000
    Vickers scales
         		 HV3, HV5, HV10, HV20, HV30, HV50, HV100
    Rockwell scales
         		 A, B, C, D, E, F, G, H, K, L, M, P, R, S, V, 15N, 30N, 45N, 15T, 30T, 45T
    Display Touchpanel IP65

    Data export
         		 PDF, Excel, ASCII
    Spindel Motorized test head with two button control
    Vertical Specimen
    Accommodation    		 500mm (floor type optional for 1000 mm height)

    Throat Depth 300mm
    Temperature range
         		 10° to 38°C (50° to 100°F)
    Humidity 10% to 80% non condensing

    Machine Dimensions 1030 x 600 x 1810 mm (40.6 × 23.6 × 79.1 in)

    Machine Weight ca. 1000 kg
