Wilson UH930 Universal Hardness Tester

SKU: uh-930
$0.00

Discontinued

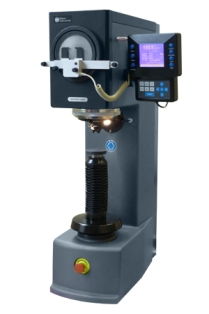

Wilson UH930 Universal Hardness Tester

Thumbnail Filmstrip of Wilson UH930 Universal Hardness Tester Images

    Product details

    Tech support available

    Product code
    uh-930
    Original Code
    uh-930
    Product weight
    0.00
    Purchase Wilson UH930 Universal Hardness Tester

    Wilson UH930 Universal Hardness Tester

    SKU: uh-930

    $0.00
    This product has been discontinued.

    Description


    The Universal Hardness Tester UH930, with its user-friendly operator panel, displays hardness values for all common hardness test procedures. The closed-loop load system eliminates overshoot and combines a fully-automatic controlled test cycle with a wide load range from 1 - 250 kgf. The quick navigation buttons allow operators access to 99 different test programs for all hardness scales (HR, HB, HV). Each program can be set up with user-defined test parameters, including test force, application time, conversion, and shape correction according to ISO standards.

    Intuitive user interface and one-touch operation ensures an efficient and reliable hardness test process. The interchangeable objectives, ranging from 20x - 140x, provide a wide application range.

    Additional Info
    Wilson UH930 Universal Hardness Tester
    Related Accessories
    Package Includes
    Accessories

    Product details

    Tech support available

    Product code
    uh-930
    Original Code
    uh-930
    Product weight
    0.00

    Product Heading content

    Technical Specifications


    Hardness Scales Brinell, Vickers, Rockwell, Superficial Rockwell
    Optics High-precision optics, screen diameter 135 mm
    Objectives Interchangeable 20X, 44X, 70X, 140X magnification (140X is in standard delivery)
    Scale Resolution Incremental scale/better than 1 micron
    Display Integrated hardness calculator, determination of hardness values for all procedures, statistics functions, data transfer
    Standards Compliance Conforms to ISO 6506, ISO 6507, ISO 6508, ASTM E18, ASTM E92, ASTM E10, and JIS
    Test Load Type Loadcell closed-loop control system
    Test Cycle Automatic
    Load Range 1 - 250 kgf
    Test Loads 1, 2.5, 3, 5, 6.25, 10, 15, 15.625, 20, 30, 31.25, 50, 60, 62.5, 100, 125, 150, 187.5, 250 kgf
    Vickers Test Procedures HV 1, 2, 3, 5, 10, 20, 30, 50, 100
    Rockwell Test Procedures A, B, C, D, E, F, G, H, K, L, M, P, R, S, V, Bm, Fm, 15N, 30N, 45N, 15T, 30T, 45T, 15W, 30W, 45W, 15X, 30X, 45X, 15Y, 30Y, 45Y, 30 TM, HMR 5/25
    Brinell Test Procedures HB1: 1, 2.5, 5, 10, 30
    HB2.5: 6.25, 15.625, 31.25, 62.5, 187.5
    HB5: 25, 62.5, 125, 250
    HB10: 100, 250
    Indenter Types Brinell Balls: 1, 2.5, 5, 10 mm
    Vickers Diamond: 136°
    Rockwell Diamond Cone: 120°
    Balls: 1/16 in, 1/8 in, 1/4 in, 1/2 in
    Load Duration 0.1 - 255 seconds
    Data Output RS-232 serial interface (to printer or PC)
    Specimen Accommodation Maximum test height 300 mm, maximum throat 150 mm
    Specimen Access External surfaces
    Cylindrical Surfaces Down to 3 mm (0.1 in) diameter
    Machine Dimensions 250 × 567 × 1018 mm (9.8 × 22.3 × 40.1 in)
    Machine Weight 200 kg (440 lbs)
    Power Supply 220V / 50Hz
